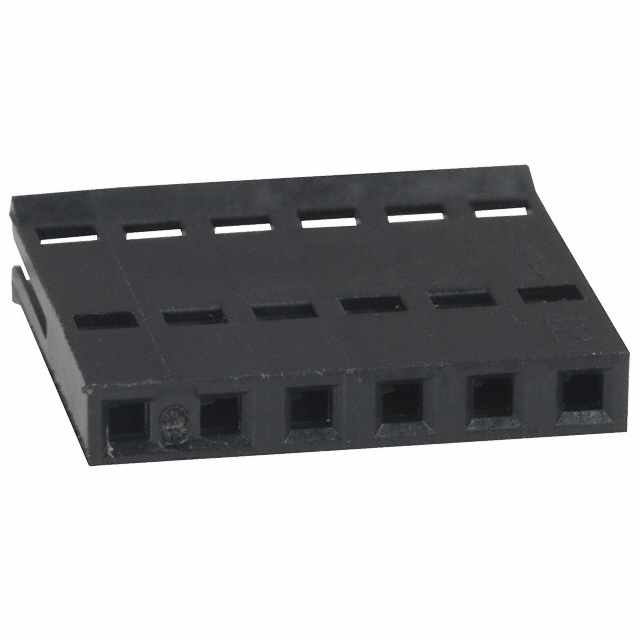

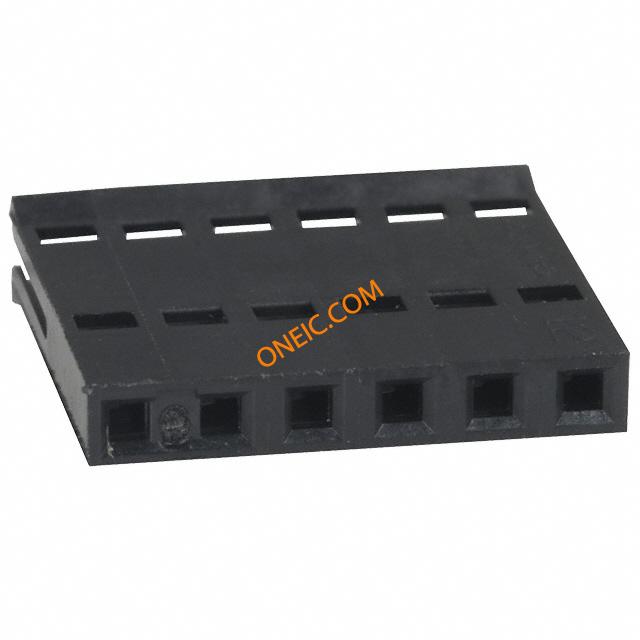

6 位置 单排 2.54 mm 中心线 细线电缆 外壳
外壳 FFC 母触点体座 - 6位置 0.100"(2.54mm)
得捷:
CONN FFC RCPT HSG 6POS 2.54MM
艾睿:
Think of TE Connectivity&s;s 487378-5 discrete wire housing the next time you need a connection between two circuits but a direct linkage is not possible. This RCP connector has 6 RCP contacts. Its pitch is 2.54 mm. It has a maximum voltage rating of 300 VAC. This is a 1-row connector. It has a receptacle type gender. It has a straight body orientation. This device has a maximum current rating of 2 A/contact. This rectangle connector has an operating temperature of -65 to 105 °C. 487378-5 is housed in black thermoplastic. This product is 15.08 mm long, 3.65 mm tall and 13.71 mm deep.
Allied Electronics:
006 HOUSING FFC RCPT 100CL SR
安富利:
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount
Verical:
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Black Package
Newark:
# AMP - TE CONNECTIVITY 487378-5 006 HOUSING FFC RCPT 100CL SR New
MASTER:
HOUSING, RECEPTACLE, FFC
Powell:
Flexible Film Connectors
Online Components:
006 HOUSING FFC RCPT 100CL SR
GOPHER:
Flexible Film Connector 6 POSITION .100 CENTERLINE RECEPT HOUSING NON-LATCHING SINGLE ROW, SLIM-LINE
Electro Sonic:
006 HOUSING FFC RCPT 100CL SR
触点数 6
极性 Male
额定电流 2 A
排数 1
易燃性等级 UL 94 V-0
针脚数 6
额定电流Max 2A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 300 VAC
额定电压 300 V
引脚间距 2.54 mm
长度 15.08 mm
宽度 2.48 mm
高度 13.71 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Bulk
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538906000
