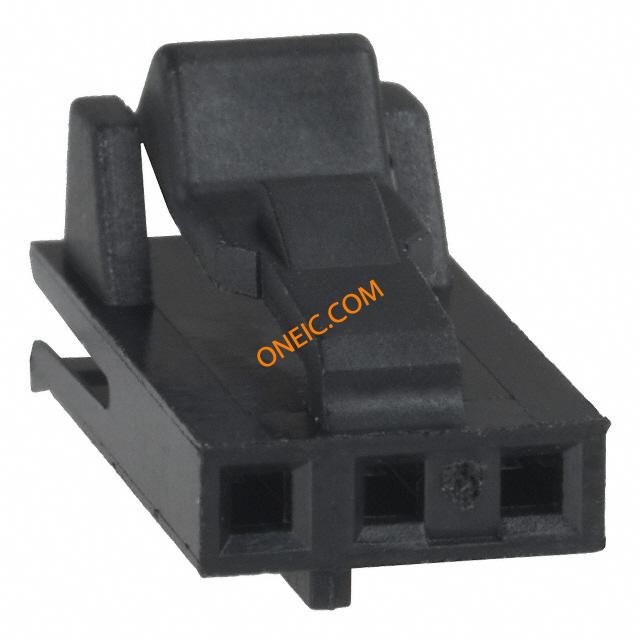

TE Connectivity 2.54mm 节距 1 行 3 路 直 包容式 FPC 连接器, 带锁定机制 487526
** Slimline FFC Receptacle Housings**
Slimline FFC plug style receptacle housings with a 2.54mm centerline. These slimline FFC receptacle housings are made from UL 94V-0 GF thermoplastic.
得捷:
CONN FFC RCPT HSG 3POS 2.54MM
欧时:
003 HOUSING FFC RCPT 100CL SR
立创商城:
塑壳
艾睿:
Securely make a connection between a board and socket using this 487526-2 discrete wire housing developed by TE Connectivity. This RCP connector has 3 RCP contacts. This is a 1-row connector. It has a receptacle type gender. It has a straight body orientation. It has a maximum voltage rating of 300 VAC. Its pitch is 2.54 mm. This device has a maximum current rating of 2 A/contact. This rectangle connector has an operating temperature of -65 to 105 °C. This product is 7.47 mm long and 13.72 mm. 487526-2 is housed in thermoplastic.
Allied Electronics:
CONNECTOR; RECEPTACLE HOUSING; FLEXIBLEFILM; 3 POS; 2.54 MM; SLIMLINE; SINGLE R
安富利:
Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount
Verical:
Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Carton
Newark:
003 HOUSING FFC RCPT 100CL SR
MASTER:
HOUSING, RECEPTACLE, LATCH, POLARIZED, FFC
Powell:
Flexible Film Connectors
GOPHER:
Flexible Film Connector 3 POSITION .100 CENTERLINE RECEPT HOUSING LATCHING SINGLE ROW, SLIM-LINE
Electro Sonic:
003 HOUSING FFC RCPT 100CL SR
触点数 3
极性 Male
额定电流 2 A
绝缘电阻 5000 MΩ
排数 1
易燃性等级 UL 94 V-0
针脚数 3
额定电流Max 2A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 300 VAC
额定电压 300 V
封装 Housing
引脚间距 2.54 mm
长度 7.47 mm
宽度 2.48 mm
高度 13.71 mm
封装 Housing
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
材质 Thermoplastic
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Bulk
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538906000
