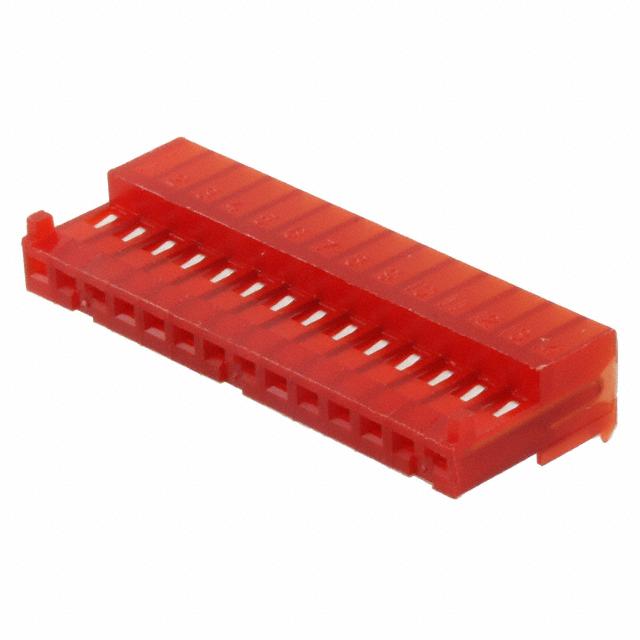

4-643813-4

AMP FROM TE CONNECTIVITY  4-643813-4  连接器, 线至板, 母, 14路, 1排

14P MTA100 CONN ASSY POL RIB

Product Highlights

MTA-100 Connectors

Number of Positions = 14

Mating Type = Receptacle

Connector Type = Closed End

Wire-to-Board Application

得捷:
CONN RCPT 14POS IDC 22AWG TIN

贸泽:
集管和线壳 14P C/E 22AWG W/ TAB W/RED STRIPE

e络盟:
连接器, 线至板, 母, 14路, 1排

艾睿:
Thanks to TE Connectivity&s;s idc connector 4-643813-4 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This F connector&s;s 14 contacts that are made out of copper alloy and plated with tin over nickel. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. It has a female type gender. This is a 1-row connector. It has a right angle body orientation. This device has a maximum current rating of 5 A/contact. This connector has an operating temperature of -55 to 105 °C. It uses the idt termination method. 4-643813-4 is housed in red nylon. This product is 35.56 mm long, 6.99 mm tall and 13.21 mm deep.

安富利:
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Loose Piece

Verical:
Conn IDC Connector F 14 POS 2.54mm IDT RA Cable Mount Box/Carton

Newark:
# AMP - TE CONNECTIVITY  4-643813-4  Wire-To-Board Connector, 2.54 mm, 14 Contacts, Receptacle, MTA-100 Series, IDC / IDT, 1 Rows

MASTER:
MTA 100 CONNECTOR ASSEMBLY, 22 AWG, STANDARD

Online Components:
14P MTA100 CONN ASSY POL RIB

Electro Sonic:
14P MTA100 CONN ASSY POL RIB
