光油扼流圈 Varnished Chokes

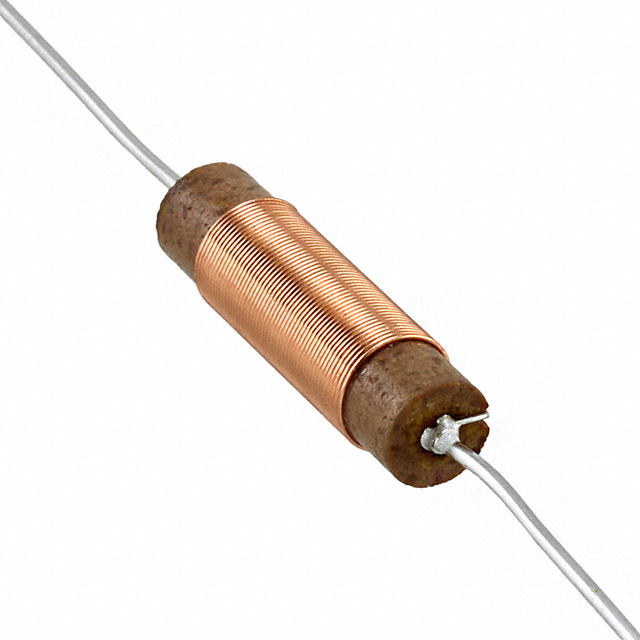

6.2µH Unshielded Wirewound Inductor 700mA 830mOhm Max Axial
立创商城:
6.2uH ±10% 700mA 830mΩ
得捷:
FIXED IND 6.2UH 700MA 830MOHM TH
艾睿:
This varnished choke 4610-RC leaded inductor from Bourns resists changes in electric current passing through it. This leaded inductor has an operating temperature range of -55 °C to 125 °C. It has a tolerance of 10%. Its test frequency is 7.96M Hz, while its minimum self-resonant frequency is 76M Hz. This device utilizes wirewound technology. It has an inductance of 6.2u H. This leaded inductor has a maximum DC current of 700m A with a maximum resistance of 830m Ohm. This product is 20.07 mm long with a diameter of 6.86 mm.
Chip1Stop:
Ind Varnished Choke Wirewound 6.2uH 10% 7.96MHz 57Q-Factor Phenolic 700mA AXL
TME:
Inductor: wire; THT; 6.2uH; 700mA; 830mΩ; Ø6.8x19.05mm; ±10%
Verical:
Varnished Choke Wirewound 6.2uH 10% 7.96MHz 57Q-Factor Phenolic 0.7A 0.83Ohm DCR AXL
MASTER:
Varnished Choke Wirewound 6.2uH 10% 7.96MHz 57Q-Factor Phenolic 700mA 830mOhm DCR AXL
Electro Sonic:
Varnished Choke Wirewound 6.2uH 10% 7.96MHz 57Q-Factor Phenolic 700mA 830mOhm DCR AXL
