4-643815-0

AMP FROM TE CONNECTIVITY  4-643815-0  绝缘压穿连接器IDC

10 位置矩形连 插座 IDC 锡 26AWG

得捷:
CONN RCPT 10POS IDC 26AWG TIN

贸泽:
集管和线壳 10P 26AWG TIN CLSD W/TAB WHT W/BLU STRP

e络盟:
绝缘压穿连接器IDC

艾睿:

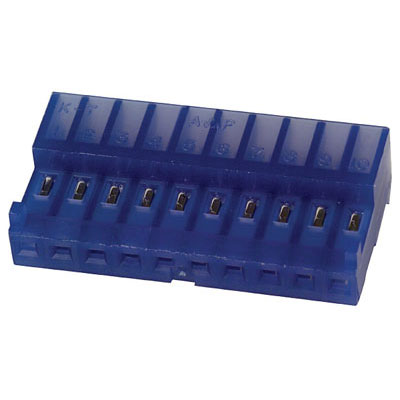

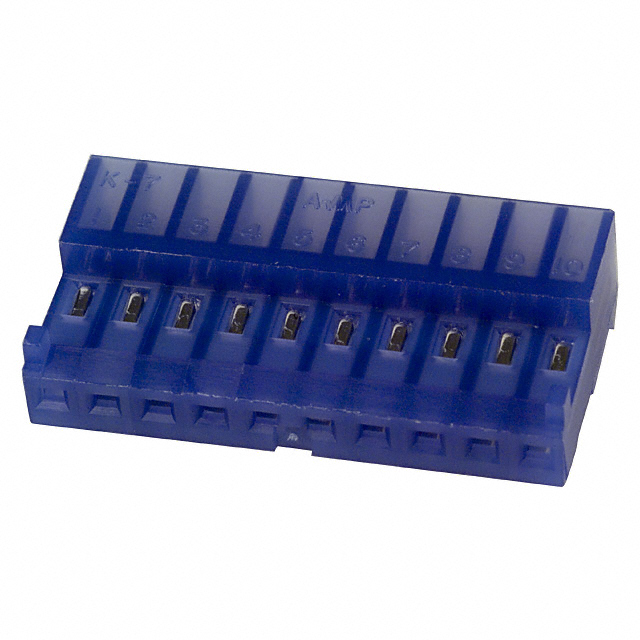

This idc connector 4-643815-0 header connector from TE Connectivity is used for jumper posts to support physical configuration options on printed circuit boards. This F connector&s;s 10 contacts that are made out of copper alloy and plated with tin over nickel. It has a right angle body orientation. It has a female type gender. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. This is a 1-row connector. This device has a maximum current rating of 5 A/contact. This product is 25.4 mm long, 6.99 mm tall and 13.21 mm deep. This connector has an operating temperature of -55 to 105 °C. 4-643815-0 is housed in blue nylon. It uses the idt termination method.

安富利:
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece

Verical:
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Box/Tray

Newark:
# AMP - TE CONNECTIVITY  4-643815-0  Wire-To-Board Connector, 2.54 mm, 10 Contacts, Receptacle, MTA-100 Series, IDC / IDT, 1 Rows

MASTER:
MTA 100 CONNECTOR ASSEMBLY, 26 AWG, STANDARD

Electro Sonic:
10P MTA100 CONN ASSY POL RIB
