4N37-X009

光电耦合器，光电晶体管输出，带底座的连接 Optocoupler, Phototransistor Output, With Base Connection

DESCRIPTION

This datasheet presents five families of Vishay industry standard single channel phototransistor couplers. These families include the 4N35, 4N36, 4N37, 4N38 couplers.

Each optocoupler consists of gallium arsenide infrared LED and a silicon NPN phototransistor.

These couplers are Underwriters Laboratories UL listed to comply with a 5000 VRMS isolation test voltage.

FEATURES

• Isolation test voltage 5000 VRMS

• Interfaces with common logic families

• Input-output coupling capacitance < 0.5 pF

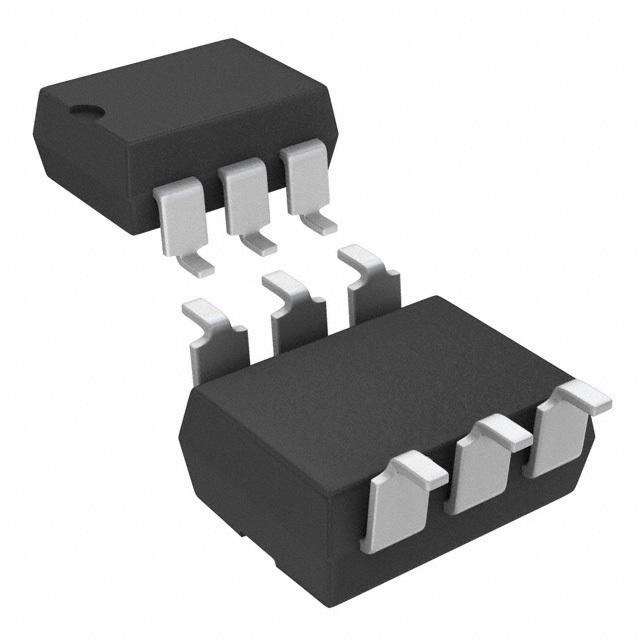

• Industry standard dual-in-line 6 pin package

• Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC

APPLICATIONS

• AC mains detection

• Reed relay driving

• Switch mode power supply feedback

• Telephone ring detection

• Logic ground isolation

• Logic coupling with high frequency noise rejection
