41727概述

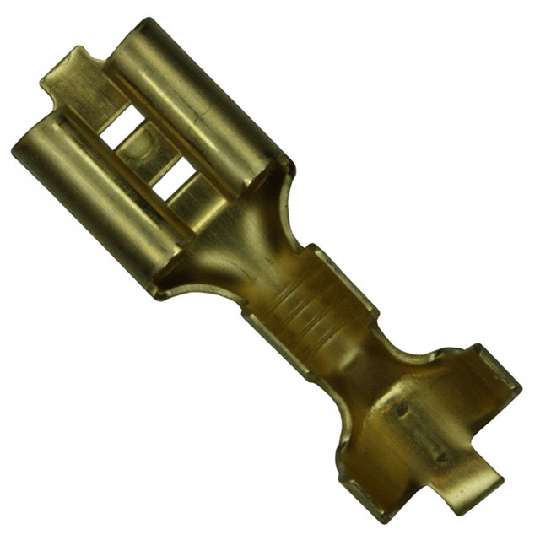

16-12 AWG 6.35 x 0.81mm 直 Faston 插座

0.250" 6.35mm Quick Connect Female 12-16 AWG Crimp Connector Non-Insulated


得捷:
CONN QC RCPT 12-16AWG 0.250


贸泽:
Terminals 16-12 AWG .250 RCPT


艾睿:
Using the quick disconnect terminal 41727 wire terminal from TE Connectivity is the easiest way to connect to your terminal blocks. It has a receptacle type gender. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. This product is 20.87 mm long and 7.62 mm. Its wire is 12-16 AWG.


安富利:
Quick Disconnect Terminal 12-16AWG RCP 20.87mm 7.62mm Strip


Verical:
Quick Disconnect Terminal 12-16AWG Brass RCP 20.87mm T/R


MASTER:
RECEPTACLE, FASTON, .250 SERIES


Powell:
FASTON Uninsulated Receptacles & Housings


Electro Sonic:
FASTON 2506.3 MM REC 16-12 AWG BR


41727中文资料参数规格
技术参数

极性 Female

线规 12AWG ~ 16AWG

方向 Straight

外形尺寸

长度 20.88 mm

宽度 7.62 mm

物理参数

触点材质 Brass

材质 Brass

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 3926909980

数据手册

在线购买41727
型号: 41727
描述:16-12 AWG 6.35 x 0.81mm 直 Faston 插座
