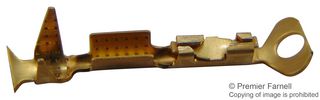

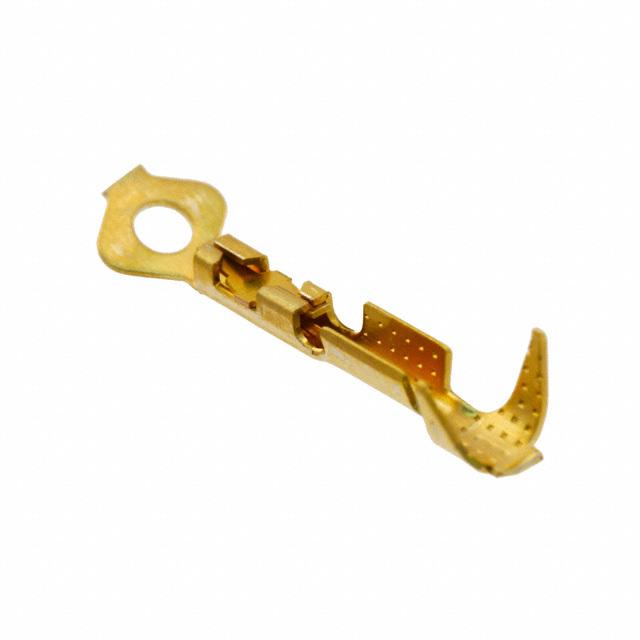

AMPHENOL FCI 47565-002LF 触芯, Mini-PV系列, 母, 压接, 22 AWG, 镀金触芯, FCI Mini-PV Series Wire-to-Board Housings
**Overview:**
The innovative PV® crimp-to-wire system connects discrete wire to printed circuit boards. High reliability dual-metal receptacle terminals plug to industry standard 0.025 inch 0.635mm square posts. A variety of containment, protection and guidance options are available for both sides of the connector interface.
**Features:**
* Unique dual-metal PV® receptacle contact maintains contact pressure through 1000 mating cycles
* A beryllium copper spring provides high normal force at the mating interface, while the brass contact body produces a reliable, gas-tight crimp termination
* Choice of three different spring pressures allows the user to customize insertion and withdrawal forces to individual application requirements
* Shrouded header side walls engage with the sides of the MINI-LATCH housing to provide additional retention
* MINI-LATCH housing firmly retains PV® wire contactsAvailable in single or double row configurations
* Keyed MINI-LATCH housings and header keyways provide polarization to prevent mis-mating
* Two wall header design provides mechanical benefits plus economy
触点数 1
极性 Female
线规 22AWG ~ 26AWG
触点电镀 Gold
排数 1
长度 11.68 mm
宽度 3.53 mm
高度 3.05 mm
触点材质 Brass
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Aerospace, Defence, Military, Consumer Electronics, Industrial, Medical, Communications & Networking, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
47565-002LF FCI Electronics 法马通 | 当前型号 | 当前型号 |
47745-001LF 法马通 | 完全替代 | 47565-002LF和47745-001LF的区别 |
0008030306 莫仕 | 功能相似 | 47565-002LF和0008030306的区别 |
47745-001 法马通 | 功能相似 | 47565-002LF和47745-001的区别 |
