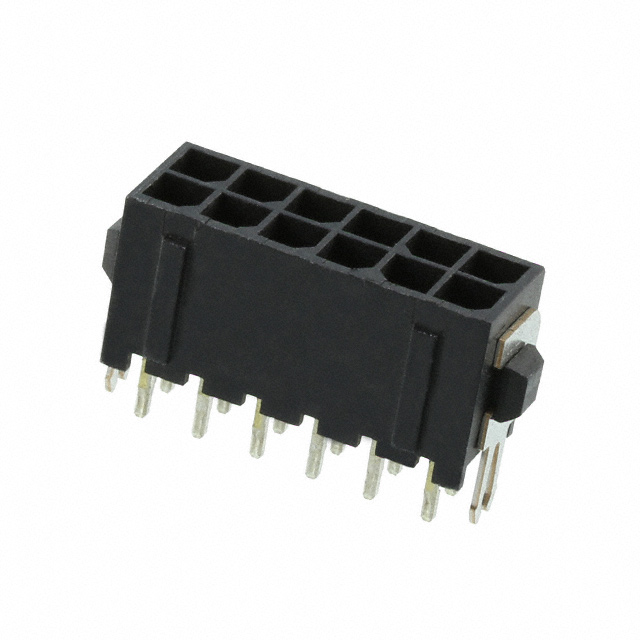

4-794682-2

Conn Wire to Board HDR 12POS 3mm Solder ST Thru-Hole

12 Position 3.00mm Pitch Dual Row Header

得捷:
CONN HEADER 12POS DL VERT 30GOLD

艾睿:
Look no further than the wire to board 4-794682-2 header connector from TE Connectivity, a great tool to use when board-to-board interconnects is required. This HDR connector&s;s 12 contacts that are made out of brass and plated with gold over nickel. It has a maximum voltage rating of 250 VAC. This is a 2-row connector. It has a header type gender. It has a straight body orientation. Its pitch is 3 mm. This device has a maximum current rating of 5 A/contact. 4-794682-2 is housed in black nylon. It uses the solder termination method. This product is 22 mm long, 9.24 mm tall and 8.67 mm deep. This connector has an operating temperature of -40 to 105 °C.

Verical:
Conn Wire to Board HDR 12 POS 3mm Solder ST Top Entry Thru-Hole Box/Tray

MASTER:
VERTICAL HEADER ASSEMBLY, THRU HOLE, 30 GOLD, DUAL ROW, MICRO MATE-N-LOK

Powell:
3mm Centerline, 250V, 5 A max.

Electro Sonic:
12P MICRO MNL ASSY,VRT,THRU,LF
