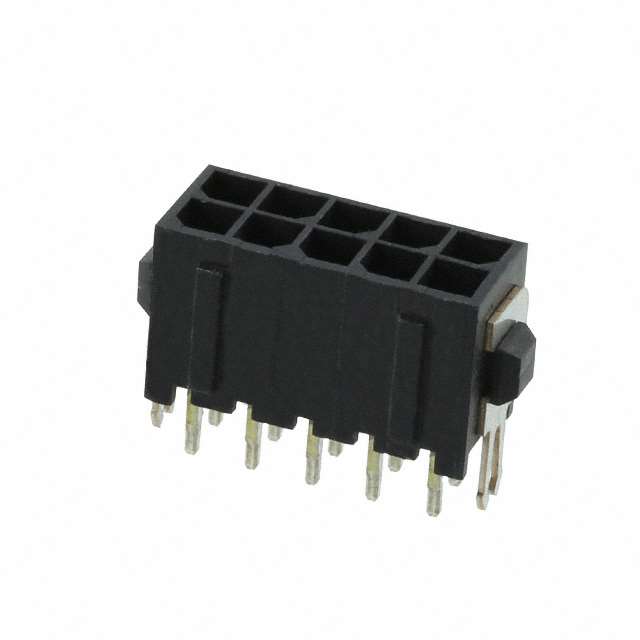

4-794682-0

Micro MATE-N-LOK 10 位置 通孔 双排 直 插针针座

针座 通孔 10 位置 0.118"（3.00mm）

得捷:
CONN HEADER VERT 10POS 3MM

艾睿:
Harsh and stressful environments are no match for this robust 4-794682-0 power connector from TE Connectivity. This HDR connector&s;s 10 contacts that are made out of brass and plated with gold over nickel. It has a straight body orientation. Its pitch is 3 mm. It has a maximum voltage rating of 250 VDC|250VAC. It has a header type gender. This connector has a single port. This device has a maximum current rating of 5 A/contact. 4-794682-0 is housed in nylon. The component will be shipped in tray format. Its 10 terminals use the solder termination method. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C. This product is 19 mm long, 9.24 mm tall and 8.67 mm deep.

安富利:
Conn Power HDR 10 POS 3mm Solder ST Thru-Hole 10 Terminal 1 Port

Verical:
Wire to Board Connector HDR 10 POS 3mm Solder ST Thru-Hole 10 Terminal 1 Port Box/Tray

MASTER:
VERTICAL HEADER ASSEMBLY, THRU HOLE, 30 GOLD, DUAL ROW, MICRO MATE-N-LOK

Powell:
3mm Centerline, 250V, 5 A max.

Electro Sonic:
10P MICRO MNL ASSY,VRT,THRU,LF
