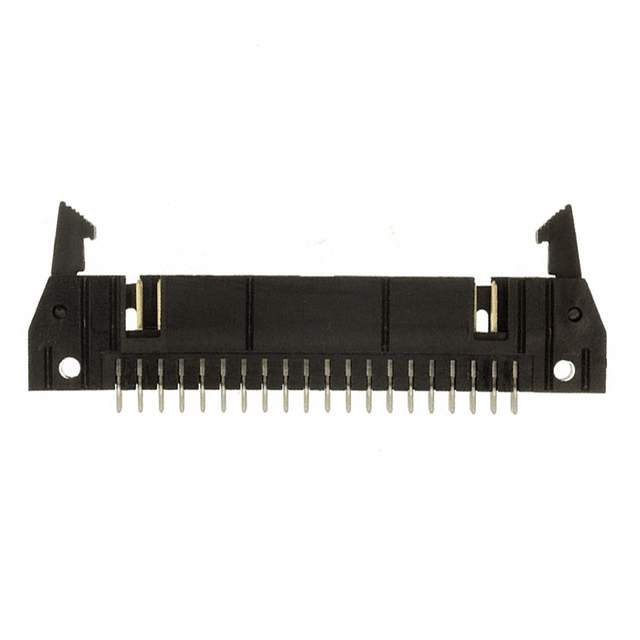

499160-9

40 位置 2.54 mm 间距 PCB 安装 连接器 弹出器 插头

针座 通孔 40 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 40POS 2.54MM

艾睿:
Easily mount this ejector 499160-9 header connector from TE Connectivity onto your PCB project to support a variety of physical configuration options. This HDR connector has 40 contacts that are plated with gold over nickel. It has a straight body orientation. It has a maximum voltage rating of 250 VAC. This is a 2-row connector. It has a header type gender. Its pitch is 2.54 mm. This device has a maximum current rating of 1 A/contact. The item will be shipped in tray orientation. This product is 70.1 mm long, 23.09 mm tall and 8.53 mm deep. It uses the solder termination method. This connector has an operating temperature of -65 to 105 °C. 499160-9 is housed in black thermoplastic.

安富利:
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Tray

Powell:
Pin and Pinless Headers AMP-LATCH

Online Components:
040 UNIV HDR SP 4S 30DP STD L2

Electro Sonic:
040 UNIV HDR SP 4S 30DP STD L2
