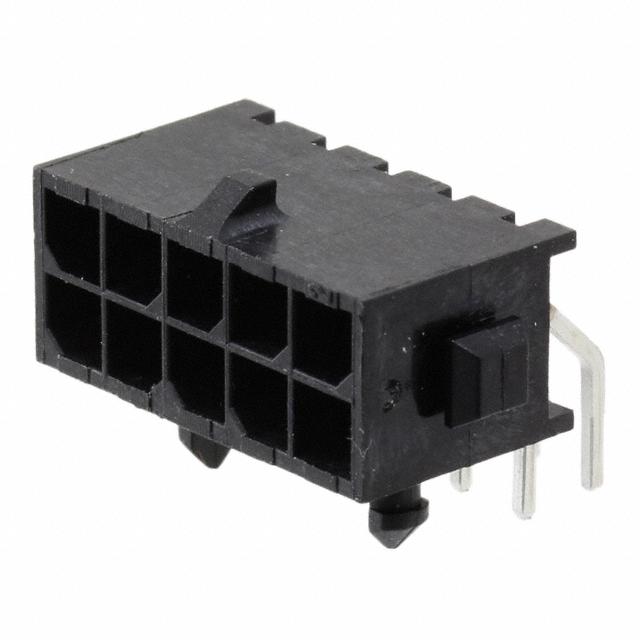

4-794619-0

Conn Power HDR 10POS 3mm Solder RA Thru-Hole 10 Terminal 1Port Tray

10P MICRO MNL ASSY,R/A,HDR LF

Product Highlights

Header Assembly

Number of Positions = 10

Number of Rows = Dual

Right Angle Mount Angle

Mount Style = Through-Hole

得捷:
CONN HEADER R/A 10POS 3MM

贸泽:
Pin & Socket Connectors 10P MICRO MNL ASSY R/A,HDR LF

艾睿:
Use this 4-794619-0 power connector from TE Connectivity to power up your circuit without having to worry about energy seepage. This HDR connector&s;s 10 contacts that are made out of brass and plated with gold over nickel. It has a header type gender. Its pitch is 3 mm. It has a right angle body orientation. This connector has a single port. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 5 A/contact. 4-794619-0 is housed in nylon. The item will be shipped in tray orientation. Its 10 terminals use the solder termination method. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C. This product is 19 mm long, 8.67 mm tall and 11.92 mm deep.

安富利:
Conn Power HDR 10 POS 3mm Solder RA Thru-Hole 10 Terminal 1 Port

Verical:
Conn Power HDR 10 POS 3mm Solder RA Thru-Hole 10 Terminal 1 Port Box/Tray

Powell:
3mm Centerline, 250V, 5 A max.

Online Components:
10P MICRO MNL ASSY,R/A,HDR LF

Electro Sonic:
10P MICRO MNL ASSY,R/A,HDR LF
