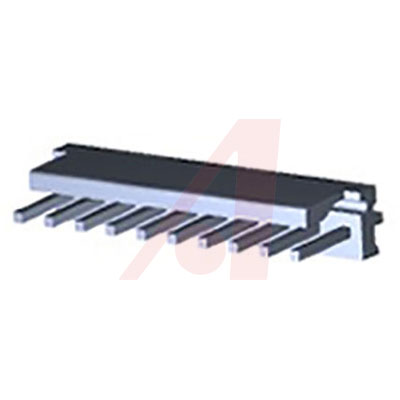

4-641208-0

AMP FROM TE CONNECTIVITY  4-641208-0  柱式接头

**Features

* **Connector Assembly **

* **12 Positions **

* **Connector Style = Receptacle **

* **Contact Type = Receptacle **

* **Connector Design = Closed End

得捷:
CONN HEADER VERT 10POS 3.96MM

e络盟:
柱式接头

艾睿:
Reduce safety concerns with this wire to board 4-641208-0 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 10 contacts that are made out of copper alloy and plated with gold over nickel. This is a 1-row connector. It has a maximum voltage rating of 600 VAC. It has a straight body orientation. It has a header type gender. Its pitch is 3.96 mm. This device has a maximum current rating of 7 A/contact. It uses the solder termination method. 4-641208-0 is housed in white polyester. This connector has an operating temperature of -55 to 105 °C. This product is 39.62 mm long, 13.34 mm tall and 7.62 mm deep.

Allied Electronics:
MTA-156 Series, 3.96mm Pitch 10Way 1 RowStraight PCB Header, Through Hole Term, 7A

安富利:
Conn Wire to Board HDR 10 POS 3.96mm Solder ST Thru-Hole

Verical:
Conn Wire to Board HDR 10 POS 3.96mm Solder ST Top Entry Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  4-641208-0  Wire-To-Board Connector, 3.96 mm, 10 Contacts, Header, MTA-156 Series, Through Hole, 1 Rows

MASTER:
MTA-.156 HDR ASSY,FRCTN LCK, STRAIGHT, .045 SQUARE POST .000030 GOLD

Electro Sonic:
10P MTA156 HDR ASSY FL ST LF
