4-641210-0

Conn Wire to Board HDR 10POS 3.96mm Solder RA Thru-Hole

Connector Header Through Hole, Right Angle 10 position 0.156" 3.96mm

得捷:
CONN HEADER R/A 10POS 3.96MM

艾睿:

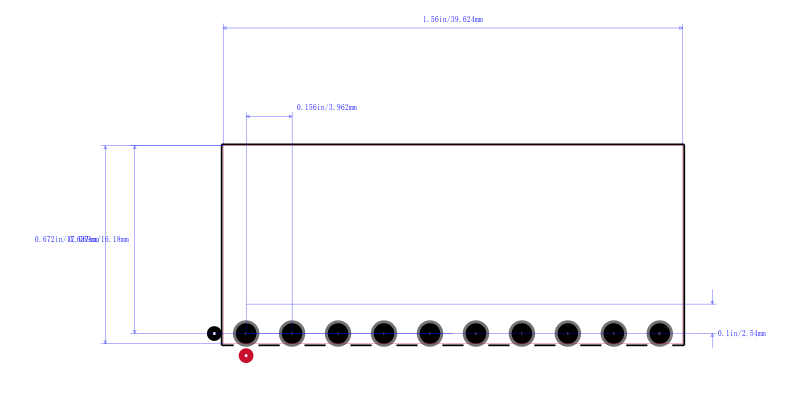

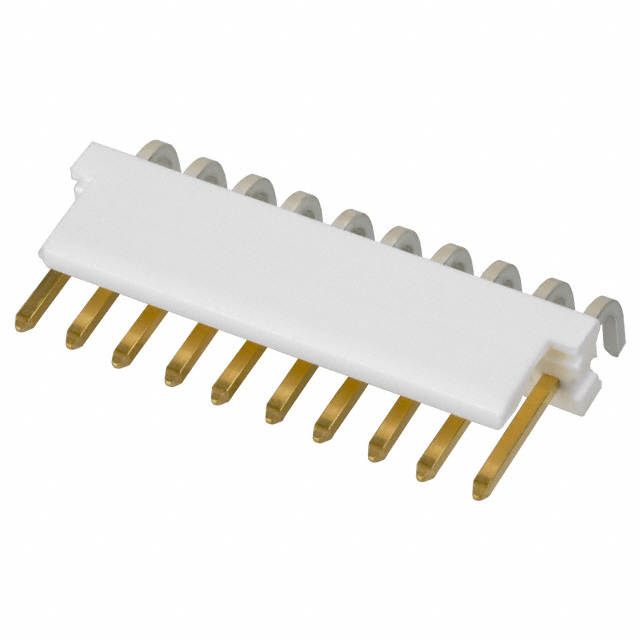

Support physical configuration options for jumper posts by mounting this wire to board 4-641210-0 header connector from TE Connectivity. This HDR connector&s;s 10 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 3.96 mm. It has a header type gender. This is a 1-row connector. It has a maximum voltage rating of 600 VAC. It has a right angle body orientation. This device has a maximum current rating of 7 A/contact. This product is 39.6 mm long, 7.62 mm tall and 18.72 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. 4-641210-0 is housed in white polyester.

安富利:
Conn Wire to Board HDR 10 POS 3.96mm Solder RA Thru-Hole

Verical:
Conn Wire to Board HDR 10 POS 3.96mm Solder RA Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  4-641210-0  10P MTA156 HDR FLRA FB 30AU LF New

MASTER:
MTA-.156 HEADER ASSEMBLY, FRICTION LOCK, RIGHT ANGLE, FRONT BEND .045 SQUARE POST, .000030 GOLD

ICbanQ:
CONN HEADER RT/A .156 10POS 30AU

Electro Sonic:
10P MTA156 HDR FLRA FB 30AU LF
