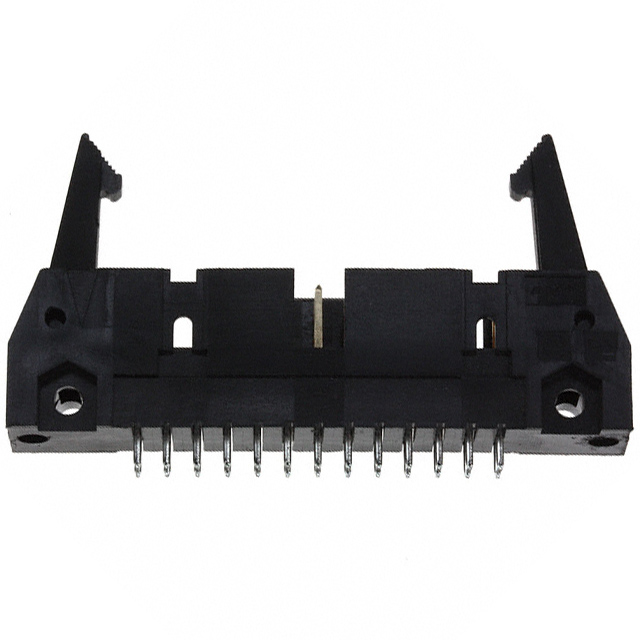

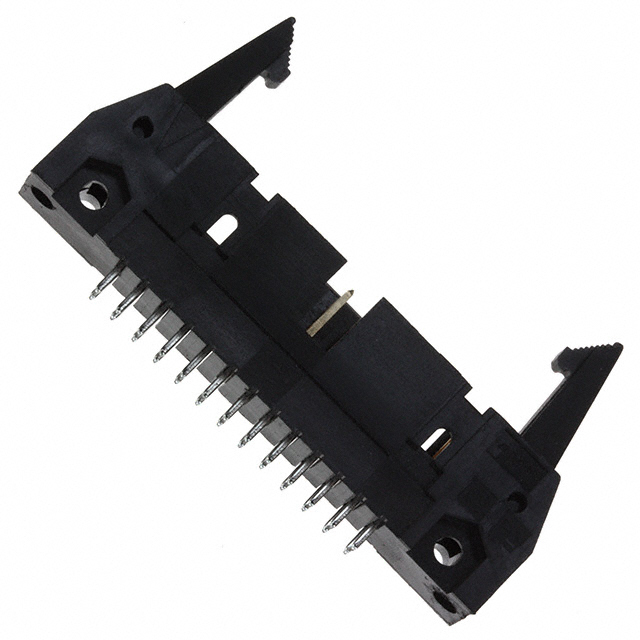

499206-6

Conn Ejector Header HDR 26POS 2.54mm Solder ST Thru-Hole

Connector Header Through Hole 26 position 0.100" 2.54mm

得捷:
CONN HEADER VERT 26POS 2.54MM

艾睿:
Mount this ejector 499206-6 header connector from TE Connectivity on a jumper post on your PCB to support physical configuration options. This HDR connector has 26 contacts that are plated with gold over palladium nickel over nickel|gold over nickel. It has a header type gender. It has a maximum voltage rating of 250 VAC. This is a 2-row connector. Its pitch is 2.54 mm. It has a straight body orientation. This device has a maximum current rating of 1 A/contact. This component will be shipped in tray format. This connector has an operating temperature of -65 to 105 °C. This product is 52.32 mm long, 27.3 mm tall and 8.53 mm deep. 499206-6 is housed in black thermoplastic. It uses the solder termination method.

安富利:
Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tray

MASTER:
HEADER ASSY, UNIVERSAL, AMP-LATCH

Powell:
Pin and Pinless Headers AMP-LATCH

Electro Sonic:
026 UNIV HDR SP 4S 30DP STD L1
