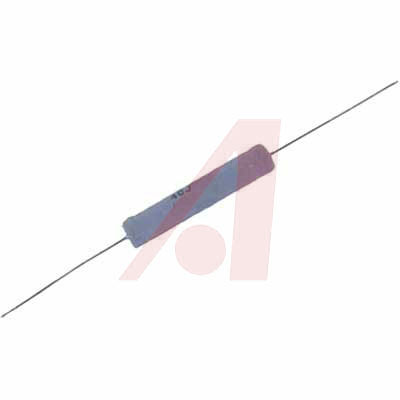

40J5K0图片1
40J5K0图片2
40J5K0图片3
40J5K0图片4
40J5K0概述

5kΩ ±5% 10W ±20ppm/℃ Φ10.30mm

Economical conformal silicone-ceramic coated resistors. These all-welded resistors are characterized by low temperature coefficients and resistance to thermal shock, ideal for communications and a wide range of electrical and electronic applications. Ceramic core and solder coated axial leads.

**Features:**

* Economical

* Applications Include Commercial, Industrial and Communications Equipment

* Stability Under High Temperature Conditions

* All-Welded Construction


得捷:
RES 5K OHM 5% 10W AXIAL


贸泽:
Wirewound Resistors - Through Hole 10watt 5K 5% Axial


Allied Electronics:
10W 5K0 OHMS SILICONE 5%


Chip1Stop:
Res Wirewound 5K Ohm 5% 10W 20ppm/ C Conformal Silicone Ceramic AXL


MASTER:
Res Wirewound 5K Ohm 5% 10W ±20ppm/°C Conformal Silicone Ceramic AXL


Electro Sonic:
Res Wirewound 5K Ohm 5% 10W ±20ppm/°C Conformal Silicone Ceramic AXL


40J5K0中文资料参数规格
技术参数

容差 ±5 %

额定功率 10 W

产品系列 40

电阻 5 KΩ

阻值偏差 ±5 %

额定电压 1 kV

封装参数

安装方式 Axial

外形尺寸

长度 41.7 mm

直径 Φ10.30mm

物理参数

工作温度 25℃ ~ 275℃

温度系数 ±20 ppm/℃

其他

产品生命周期 Active

包装方式 Bulk

最小包装 250

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

海关信息

ECCN代码 EAR99

HTS代码 8533210080

数据手册

40J5K0引脚图与封装图
40J5K0引脚图

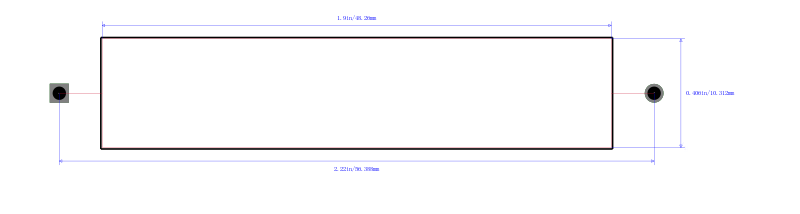

40J5K0封装图

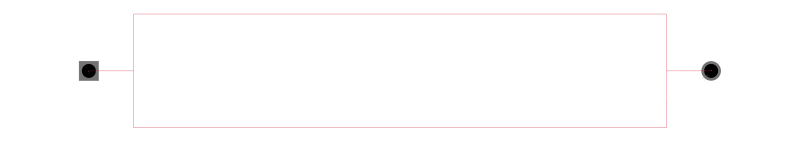

40J5K0封装焊盘图
