Switch Slide ON None ON SPDT Top Slide 20VAC 20VDC 0.4VA PC Pins Thru-Hole Bulk

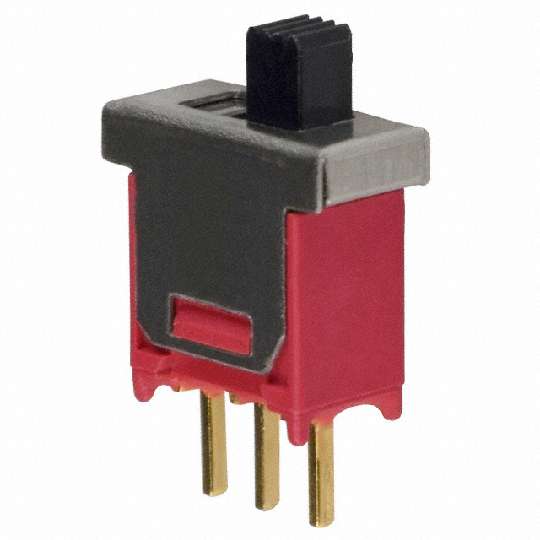

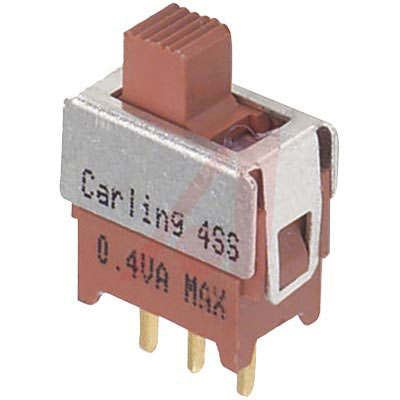

4S1 Series Sub-Miniature Slide Switch
* Epoxy terminal seal
* Nylon slide handle
* Contact Rating: 5 A @ 125 VAC or 28 VDC, 2 A @ 250 VAC
* Operating Temperature: -30°C to +85°C
* Stainless Steel Housing
* Epoxy Sealed
得捷:
SWITCH SLIDE SPDT 0.4VA 20V
Allied Electronics:
Switch, Slide; Single Pole; 0.4 VA Max. @ 20 V Max.; 20 VAC/20 VDC Max.
Chip1Stop:
Switch Slide ON None ON SPDT Top Slide 20VAC 20VDC 0.4VA PC Pins Thru-Hole Bulk
Verical:
Switch Slide ON None ON SPDT Top Slide 20VAC 20VDC 0.4VA PC Pins Thru-Hole Bulk
MASTER:
Switch Slide ON None ON SPDT Top Slide 20VAC 20VDC 0.4VA PC Pins Thru-Hole Bulk
Online Components:
Switch Slide ON None ON SPDT Top Slide 20VAC 20VDC 0.4VA PC Pins Thru-Hole Bulk
Electro Sonic:
Switch Slide ON None ON SPDT Top Slide 20VAC 20VDC 0.4VA PC Pins Thru-Hole Bulk
触点电镀 Gold
额定电压DC 20 V
接触器类型 Standard
额定电压AC 20 V
绝缘电阻 ≥1000 MΩ
方向 Vertical
触点类型 SPDT
针脚数 2
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 20 VDC
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max 10 mΩ
安装方式 Through Hole
长度 8.10 mm
宽度 5.10 mm
高度 13.15 mm
触点材质 Gold
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
