40F62RE

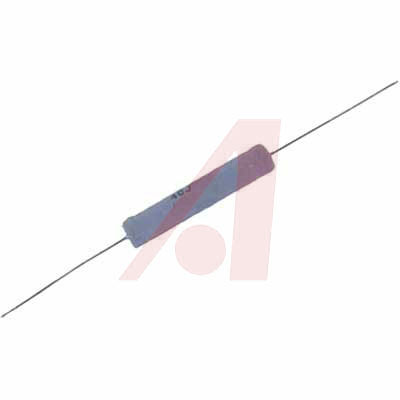

40F62RE图片1
40F62RE图片2
40F62RE图片3
40F62RE图片4
40F62RE图片5
40F62RE概述

线绕电阻器 - 透孔 10watt 62ohm 1% Axial

Economical conformal silicone-ceramic coated resistors. These all-welded resistors are characterized by low temperature coefficients and resistance to thermal shock, ideal for communications and a wide range of electrical and electronic applications. Ceramic core and solder coated axial leads.

**Features:**

* Economical

* Applications Include Commercial, Industrial and Communications Equipment

* Stability Under High Temperature Conditions

* All-Welded Construction


得捷:
RES 62 OHM 1% 10W AXIAL


立创商城:
绕线电阻 62Ω ±1% 10W


贸泽:
线绕电阻器 - 透孔 10watt 62ohm 1% Axial


Allied Electronics:
RES 62 OHM 10W 1% AXIAL


Chip1Stop:
Res Wirewound 62 Ohm 1% 10W 20ppm/ C Conformal Silicone Ceramic AXL


Verical:
Res Wirewound 62 Ohm 1% 10W ±20ppm/C Conformal Silicone Ceramic AXL


MASTER:
Res Wirewound 62 Ohm 1% 10W ±20ppm/°C Conformal Silicone Ceramic AXL


Electro Sonic:
Res Wirewound 62 Ohm 1% 10W ±20ppm/°C Conformal Silicone Ceramic AXL


40F62RE中文资料参数规格
技术参数

容差 1 %

额定功率 10 W

产品系列 40

电阻 62 Ω

阻值偏差 ±1 %

工作温度Max 275 ℃

工作温度Min 25 ℃

封装参数

安装方式 Axial

封装 轴向引线

外形尺寸

长度 48.3 mm

直径 Φ10.30mm

封装 轴向引线

物理参数

工作温度 25℃ ~ 275℃

温度系数 ±20 ppm/℃

其他

产品生命周期 Active

包装方式 Bulk

最小包装 250

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8533210080

数据手册

40F62RE引脚图与封装图
40F62RE引脚图

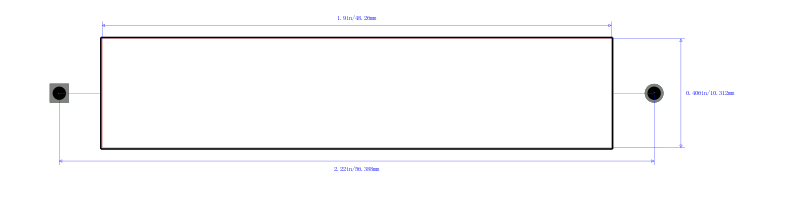

40F62RE封装图

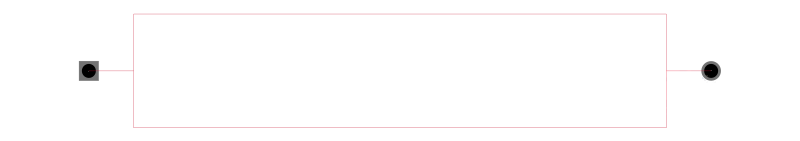

40F62RE封装焊盘图
在线购买40F62RE
型号: 40F62RE
制造商: Ohmite
描述:线绕电阻器 - 透孔 10watt 62ohm 1% Axial
