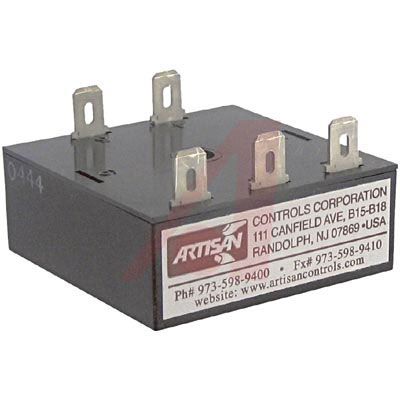

Timer; Interval; 2s-1000s; SSR; SPST-NO; 1A@120VAC; Pnl-Mnt; Quick Connect
Model 4300 is an interval timer that permits operating voltage to be applied to a load circuit 1 ampere for a preset timing period. The load will operate only once for each application of power for the preset time and then turn off. Should the power be removed during the timing period the load would turn off and the timing period reset to the start of another cycle. In order for the load circuit to see the full interval of operating voltage, the input voltage must be present for a duration that exceeds the preset timing interval. Other voltages and times available from factory.
* Digital Timing Circuitry
* 1 Ampere Output
* Fixed and Adjustable Time
* UL Recognized
* Transient Protected
* Encapsulated Circuitry
