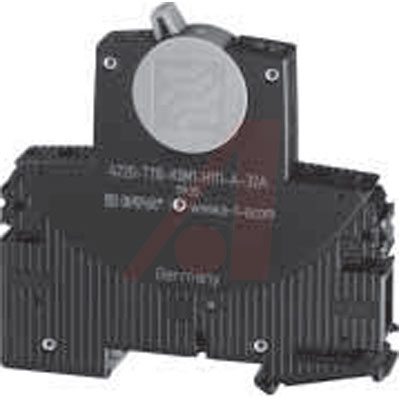

Circuit Breaker; Thermal-Magnetic; 2A ; 12.5Mm Wide Single Pole
Single, double and three pole thermal-magnetic circuit breakers with high rupture capacity to UL 489 5 kA, EN/IEC 60934 6kA and UL 1077 5 kA. With toggle actuation, positively trip-free mechanism, a choice of characteristic curves and a wide range of current ratings in finely graded steps from 0.1 A through 32 A. Auxiliary contacts make or break contacts are optionally available. Track-mountable design, width only 12.5 mm. Ease of wiring by means of an integral busbar concept: line entry busbar LINE+ and signal busbars/signal jumpers.
额定电流 2 A
安装方式 DIN Rail
Actuator Type Lever
Brand/Series 4220-T Series
Characteristic Thermal
Current Rating 2 A
Dimensions 3.515 H x 0.492 W x 3.429 D mm
Mounting Type DIN Rail
Number of Poles 1 Pole
Primary Type Circuit Breaker
Special Features IEC 60934 Listed/UL 489 Listed/
Termination Screws
Type Thermal/Magnetic
Voltage Rating 240/415 VAC, 60 VDC
Voltage, AC 240V
Voltage, DC 60V
RoHS标准 RoHS Compliant
