43F6K0

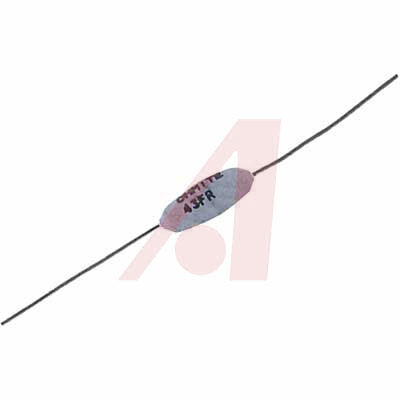

43F6K0图片1
43F6K0图片2
43F6K0概述

线绕电阻器 - 透孔 3watt 6K 1% Axial

Economical conformal silicone-ceramic coated resistors. These all-welded resistors are characterized by low temperature coefficients and resistance to thermal shock, ideal for communications and a wide range of electrical and electronic applications. Ceramic core and solder coated axial leads.

**Features:**

* Economical

* Applications Include Commercial, Industrial and Communications Equipment

* Stability Under High Temperature Conditions

* All-Welded Construction


贸泽:
线绕电阻器 - 透孔 3watt 6K 1% Axial


Allied Electronics:
RES 6K OHM 3W 1% AXIAL


Electro Sonic:
Res Wirewound 6K Ohm 1% 3W ±20ppm/°C Conformal Silicone Ceramic AXL


43F6K0中文资料参数规格
技术参数

额定电压DC 200 V

容差 1 %

额定功率 3 W

产品系列 40

电阻 6 KΩ

阻值偏差 ±1 %

工作温度Max 275 ℃

工作温度Min 25 ℃

封装参数

安装方式 Through Hole

外形尺寸

长度 15.1 mm

直径 5.54 mm

物理参数

工作温度 25℃ ~ 275℃

温度系数 ±20 ppm/℃

其他

包装方式 Bulk

最小包装 250

符合标准

RoHS标准 Non-Compliant

含铅标准 Lead Free

数据手册

在线购买43F6K0
型号: 43F6K0
制造商: Ohmite
描述:线绕电阻器 - 透孔 3watt 6K 1% Axial
