4420.0198

4420.0198图片1
4420.0198图片2
4420.0198图片3
4420.0198概述

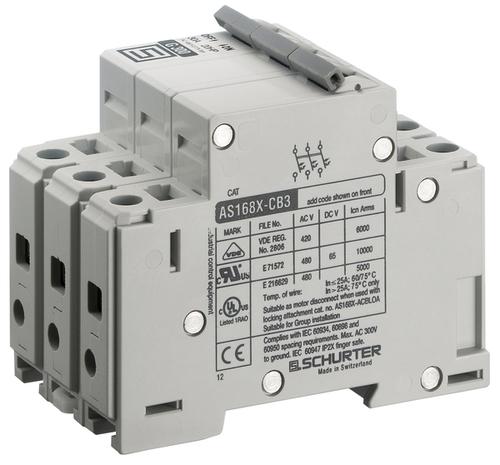

Circuit Breaker; Therm/Mag; 3P; G Curve; 20A; 480Y/277VAC/65VDC; Handle; Screw; DIN Mnt

**AS168X Series**

Professional range of thermal magnetic circuit breakers from the AS168X series. Suitable applications include motor overload protection and control circuits. The circuit breakers feature a compact "Finger Safe" design.


得捷:
CIR BRKR THRM MAG 20A 480V 65V


贸泽:
Circuit Breakers DIN THERM-MAG 3P 20A UL1077 LISTED


Allied Electronics:
Circuit Breaker; Therm/Mag; 3P; G Curve; 20A; 480Y/277VAC/65VDC; Handle; Screw; DIN Mnt


Electro Sonic:
CBE AS168X-CB3G200


CDI:
CBE AS168X-CB3G200


4420.0198中文资料参数规格
技术参数

额定电压DC 65 V

额定电压AC 277 V

额定电流 20 A

额定电压 277 VAC

封装参数

安装方式 Screw, DIN Rail

外形尺寸

长度 90 mm

宽度 17.5 mm

高度 68.4 mm

物理参数

工作温度 20℃ ~ 60℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买4420.0198
型号: 4420.0198
制造商: Schurter
描述:Circuit Breaker; Therm/Mag; 3P; G Curve; 20A; 480Y/277VAC/65VDC; Handle; Screw; DIN Mnt
