5HT 2-R

5HT 2-R图片1
5HT 2-R图片2
5HT 2-R图片3
5HT 2-R图片4
5HT 2-R概述

Fuse Miniature Slow Blow Acting 2A 250V Holder Cartridge 5 X 20mm Ceramic

2A 250V AC DC Fuse Cartridge, Ceramic Holder 5mm x 20mm


得捷:
FUSE CERAMIC 2A 250VAC 5X20MM


艾睿:
Be protected by adding a miniature 5HT 2-R fuse developed by Bel Fuse. This device has a maximum power dissipation of 1 W. Its maximum power dissipation is 1 W. This device has a current rating of 2. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 5HT 2-R fuse has a cartridge termination style. This product is 20 mm long with a diameter of 5.1 mm. The maximum AC voltage rating is 250 VAC. Its fuse is made from ceramic.


安富利:
Fuse Miniature 2A 250V Slow Blow 2-Pin Cartridge Holder


Chip1Stop:
Fuse Miniature Slow Blow Acting 2A 250V Holder Cartridge 5 X 20mm Ceramic


Verical:
Fuse Miniature Slow Blow Acting 2A 250V Holder Cartridge 5 X 20mm Ceramic CCC/CE/CSA/PSE/SEMKO/VDE/cULus


5HT 2-R中文资料参数规格
技术参数

额定电压DC 250 V

额定电压AC 250 V

额定电流 2 A

耗散功率 1 W

工作温度Max 125 ℃

工作温度Min -55 ℃

耗散功率Max 1 W

额定电压 250 V

额定电压AC Max 250 V

封装参数

引脚数 2

外形尺寸

长度 20.0 mm

直径 5.10 mm

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

5HT 2-R引脚图与封装图

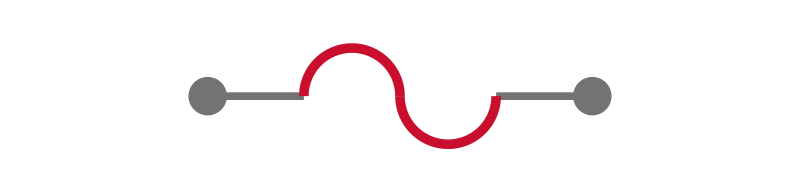

5HT 2-R引脚图
5HT 2-R封装图
5HT 2-R封装焊盘图
在线购买5HT 2-R
型号: 5HT 2-R
描述:Fuse Miniature Slow Blow Acting 2A 250V Holder Cartridge 5 X 20mm Ceramic
