5ST 400-R

5ST 400-R图片1
5ST 400-R图片2
5ST 400-R图片3
5ST 400-R图片4
5ST 400-R图片5
5ST 400-R概述

保险丝管

400mA 250V AC DC Fuse Cartridge, Glass Holder 5mm x 20mm


得捷:
FUSE GLASS 400MA 250VAC 5X20MM


贸泽:
保险丝管


艾睿:
A great alternative to a circuit breaker, this a miniature 5ST 400-R fuse from Bel Fuse will protect your electronics. This device has a current rating of 0.4. This device has a maximum power dissipation of 0.34 W. Its maximum power dissipation is 0.34 W. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 5ST 400-R fuse has a cartridge termination style. This product is 20 mm long with a diameter of 5.1 mm. The maximum AC voltage rating is 250 VAC. Its fuse is made from glass.


安富利:
Fuse Miniature 0.4A 250V Slow Blow 2-Pin Cartridge Holder


Chip1Stop:
Fuse Miniature Slow Blow Acting 0.4A 250V Holder Cartridge 5 X 20mm Glass CCC/CE/CSA/IMQ/SEMKO/VDE/cULus


Verical:
Fuse Miniature Slow Blow Acting 0.4A 250V Holder Cartridge 5 X 20mm Glass CCC/CE/CSA/SEMKO/VDE/cULus


5ST 400-R中文资料参数规格
技术参数

额定电压DC 250 V

额定电压AC 250 V

额定电流 400 mA

耗散功率 0.34 W

电阻 0.72 Ω

工作温度Max 125 ℃

工作温度Min -55 ℃

耗散功率Max 0.34 W

额定电压 250 V

额定电压AC Max 250 V

封装参数

引脚数 2

封装 5mm x 20mm

外形尺寸

长度 20 mm

直径 5.10 mm

封装 5mm x 20mm

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

5ST 400-R引脚图与封装图
5ST 400-R引脚图
5ST 400-R封装图

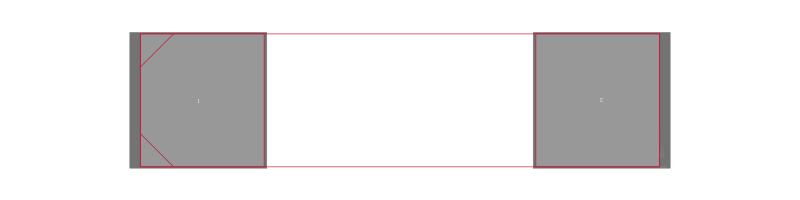

5ST 400-R封装焊盘图
