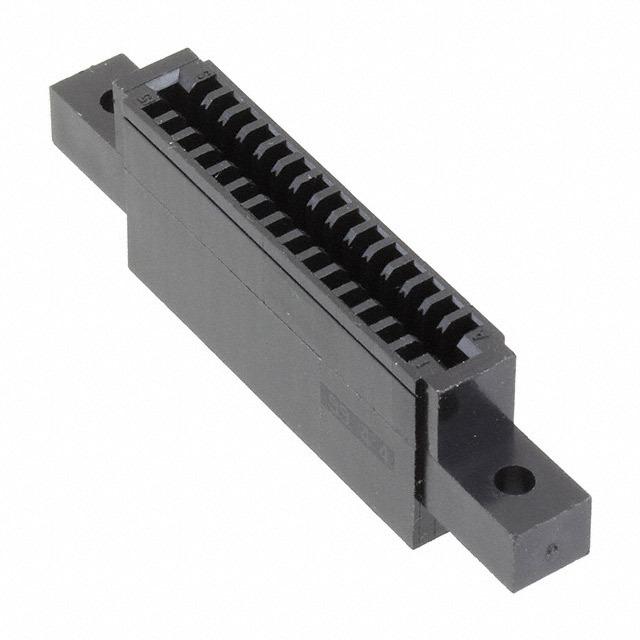

Conn Housing RCP 30POS 2.54mm Crimp ST Cable Mount
TW-LEAF CRP HSG 15 POS 100 C/L
Product Highlights
Housing
15 Dual Positions
2.54 mm Centerline
With Mounting Ears
得捷:
CONN CARDEDGE HSG 30POS .100 BLK
贸泽:
Standard Card Edge Connectors TW-LEAF CRP HSG. 15 POS.
艾睿:
TE Connectivity&s;s 583718-3 discrete wire housing provides a durable connection for discrete wires. This RCP connector has 30 RCP contacts. It has a straight body orientation. It has a receptacle type gender. Its pitch is 2.54 mm. This is a 2-row connector. This product is 66.04 mm long, 8.89 mm tall and 19.05 mm deep. This rectangle connector has an operating temperature of -55 to 105 °C. 583718-3 is housed in black polyester. Its wire is 16-28 AWG.
安富利:
Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount
Chip1Stop:
Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount
Verical:
TW-LEAF CRP HSG 15 POS 100 C/L
MASTER:
HOUSING, CRIMP SNAP TWIN LEAF
Powell:
.100, .125, .156 Centerline Connectors Crimp Snap Twin Leaf
Electro Sonic:
TW-LEAF CRP HSG 15 POS 100 C/L
触点数 30
绝缘电阻 5000 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 30
工作温度Max 105 ℃
工作温度Min -55 ℃
安装方式 Panel
封装 100
长度 66.04 mm
宽度 19.05 mm
高度 19.05 mm
封装 100
外壳颜色 Black
颜色 Black
工作温度 -55℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538906000
