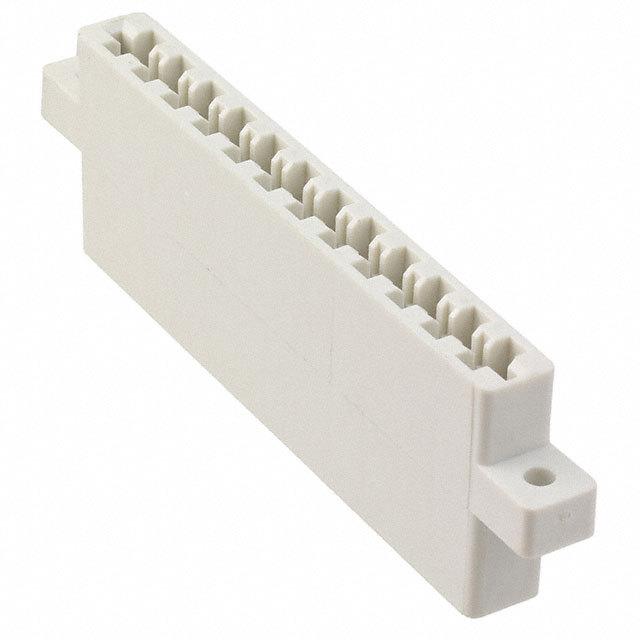

530521-9

Conn Housing RCP 12POS 7.92mm Crimp ST Cable Mount

24 Position Card Edge Connector Housing Natural 0.312" 7.92mm Panel Mount

得捷:
CONN CARDEDGE HSG 24POS .312 NAT

艾睿:
This 530521-9 discrete wire housing from TE Connectivity has secure locking mechanisms when used for larger power applications. This RCP connector has 12 RCP contacts. This is a 1-row connector. Its pitch is 7.92 mm. It has a straight body orientation. It has a maximum voltage rating of 250 VAC. It has a receptacle type gender. This device has a maximum current rating of 30 A/contact. 530521-9 is housed in white polyester. This rectangle connector has an operating temperature of -40 to 95 °C. Its wire is 10-16 AWG. This product is 121.41 mm long, 11.1 mm tall and 35.56 mm deep.

安富利:
Conn Housing RCP 12 POS 7.92mm Crimp ST Cable Mount

Verical:
Conn Housing RCP 12 POS 7.92mm Crimp ST Cable Mount White Box

Newark:
# AMP - TE CONNECTIVITY  530521-9  HIGH CURRENT HSG 12 POS New

MASTER:
HOUSING, HIGH-CURRENT CONNECTOR

Powell:
.312 Centerline High Current Connectors

Electro Sonic:
HIGH CURRENT HSG 12 POS
