531230-2

AMP - TE CONNECTIVITY  531230-2  跳线母线, Post Shunt, AMP AMPMODU Series Interconnection Systems, 2 路, 5.08 mm 新

** AMPMODU 5.08mm Standard Housing Shunts**

AMPMODU 5.08mm low profile standard housing shunts with 94V-0 rated black polyester GF housings. These 5.08mm low profile housing shunts are open top style and formed from a one piece construction, they are also stackable.

立创商城:

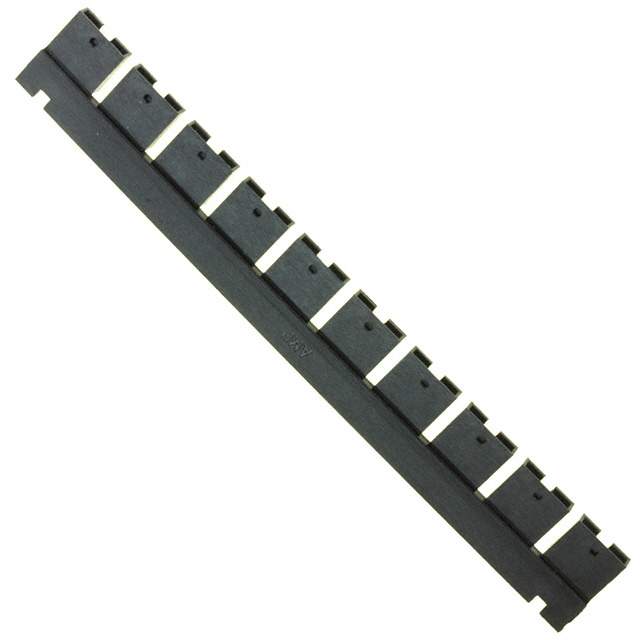

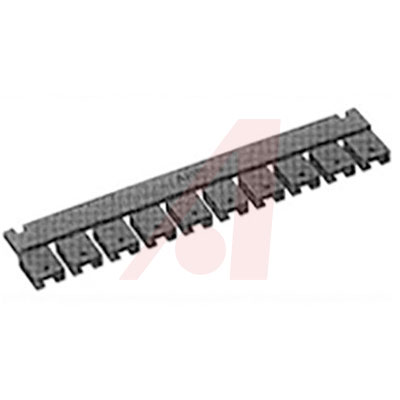

531230-2（一排10个）

得捷:
SHUNT .200 C/L LP 2 POS 15AU

贸泽:
Headers & Wire Housings 2POS SHUNT .2" GLD

e络盟:
跳线母线, 后分流, AMP AMPMODU系列互联系统, 2 路, 5.08 mm

艾睿:

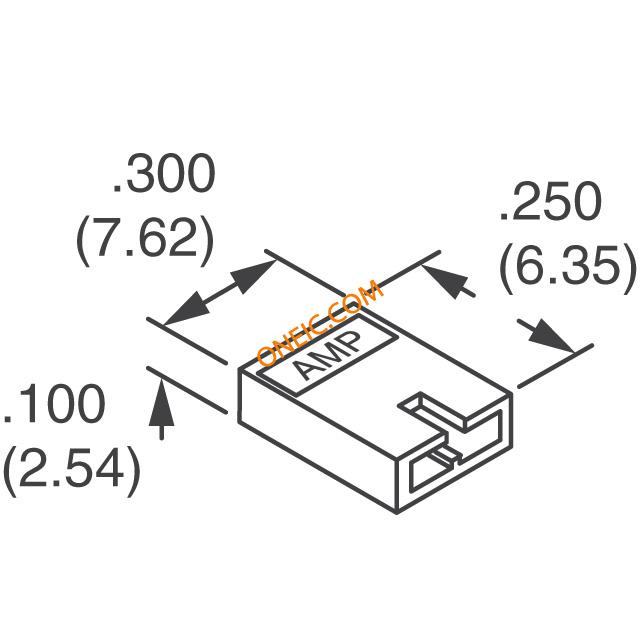

In situations where you are required to run components in a parallel or short-circuit layout, the 531230-2 connector from TE Connectivity can help you. This F connector&s;s 2 contacts that are made out of beryllium copper and plated with gold over nickel. It has a straight body orientation. Its pitch is 5.08 mm. This is a 1-row connector. It has a female type gender. This device has a maximum current rating of 3 A/contact. This product is 7.62 mm long, 2.54 mm tall and 6.35 mm deep. This terminal block jumper has an operating temperature of -65 to 105 °C. 531230-2 is housed in black polyester.

Allied Electronics:
SHUNT; 2 POSITION; 5.08 MM; 15 AU; RED; OPEN TOP

Jameco:
Connector Shunt Female 2 Position 5.08mm Straight Straightick

安富利:
Conn Shunt F 2 POS 5.08mm ST Stick

Chip1Stop:
Conn Shunt F 2 POS 5.08mm ST Box

Verical:
Conn Shunt F 2 POS 5.08mm ST Box

Newark:
# AMP - TE CONNECTIVITY  531230-2  Jumper Busbar, Shunt, Connectors, 2 Positions, 0.2 "

MASTER:
LOW PROFILE SHUNT CONNECTOR 5.08 [.200] CL

Powell:
Post Shunts

ICbanQ:
SHUNT .200 C/L LP 2 POS 15AU

Electro Sonic:
SHUNT, .200 C/L,LP,2 POS, 15AU
