5145166-8

1.27mm P数:184

184 位置 母头 PCI 5V 64 位 镀金 0.050"（1.27mm） 天然

得捷:
CONN PCI CARDEDGE FML 184P 0.050

立创商城:
1.27mm P数:184

艾睿:

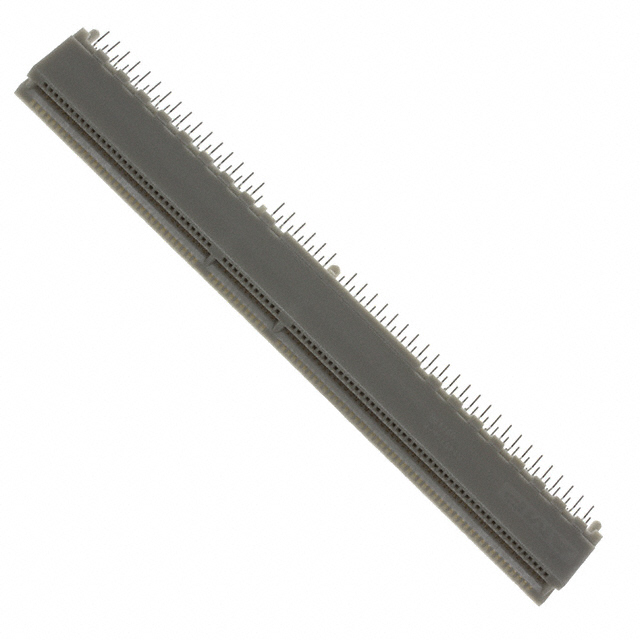

Simply connect the male side of an already manufactured printed circuit to TE Connectivity&s;s 5145166-8 smart card connector to allow for a cost saving connection. This SKT connector&s;s 184 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a maximum voltage rating of 203 VAC. This is a 2-row connector. Its pitch is 1.27 mm. It has a socket type gender. This product is 15.49 mm tall. This device has a maximum current rating of 1 A/contact. It uses the solder termination method. This card edge connector has an operating temperature of -55 to 85 °C. 5145166-8 is housed in natural thermoplastic.

Chip1Stop:
Conn Card Edge SKT 184 POS 1.27mm Solder ST Thru-Hole Box

Electro Sonic:
CONNECTOR ASSEMBLY, DUAL POSIT
