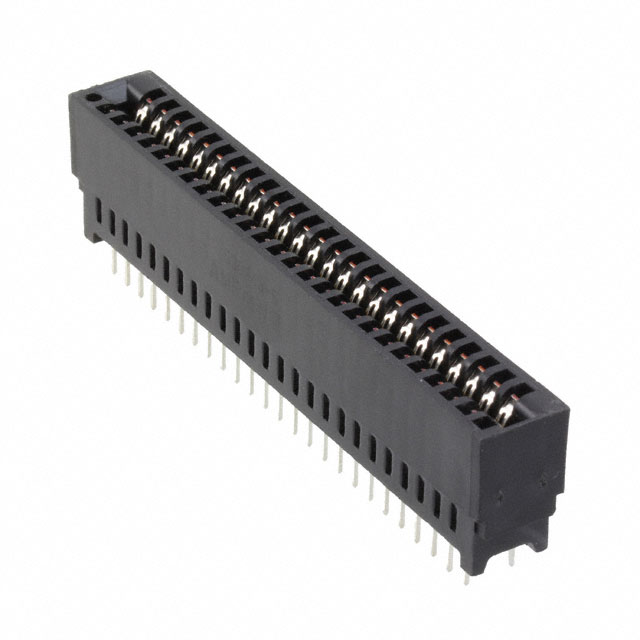

Conn Card Edge SKT 120POS 2.54mm Solder ST Thru-Hole
50 位置 母头 多总线 I 镀金 0.100"(2.54mm) 黑色
得捷:
CONN CARDEDGE FEMALE 50POS 0.100
艾睿:
When space for electrical connections on printed circuit boards is limited then it is in your favor to use this 530843-5 smart card connector from TE Connectivity. This SKT connector&s;s 120 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a socket type gender. Its pitch is 2.54 mm. This is a 2-row connector. It has a maximum voltage rating of 400 VAC. This product is 15.49 mm tall. This device has a maximum current rating of 3 A/contact. It uses the solder termination method. This card edge connector has an operating temperature of -55 to 85 °C. 530843-5 is housed in black polyester.
Chip1Stop:
Conn Card Edge SKT 120 POS 2.54mm Solder ST Thru-Hole
Electro Sonic:
Conn Card Edge SKT 120 POS 2.54mm Solder ST Thru-Hole
触点数 120
极性 Male
触点电镀 Gold, Tin
绝缘电阻 5000 MΩ
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 50
额定电流Max 3A/触头
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压Max 400 VAC
接触电阻Max 10 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 159 mm
宽度 9.35 mm
高度 15.49 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 85℃
外壳材质 Polyester
产品生命周期 End of Life
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
