5851 VI001

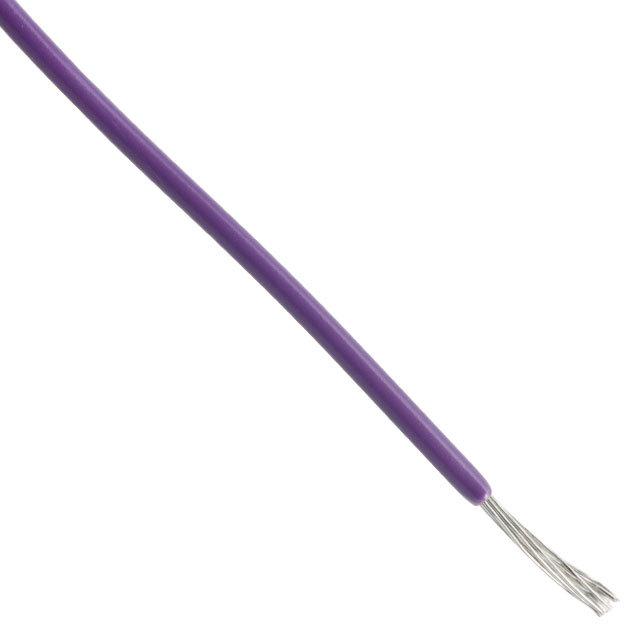

ALPHA WIRE 5851 VI001 Wire, Hook Up, UL1213, PTFE, Purple, 30AWG, 0.06mm², 7 x 38AWG, 1000Ft

The 5851 series products from are hook up wires used for electrical connections. This hook up wire comprises stranded or solid silver plated copper conductor with polytetrafluoroethylene PTFE insulation material. These wire features high temperature, excellent chemical, solvent resistance and excellent electrical properties.

.

Conductor size of 30AWG and 7/38AWG strand size

.

Voltage rating of 600V

.

Available in 100ft, 1000ft lengths

.

MIL-DTL-16878/4 Type E, UL 1213 and NEMA HP3 certified

.

Available in variety of jacket colours

.

Insulation thickness of 0.010inch

.

Operating temperature ranges is -60°C to +200°C MIL and -60°C to +105°C UL
