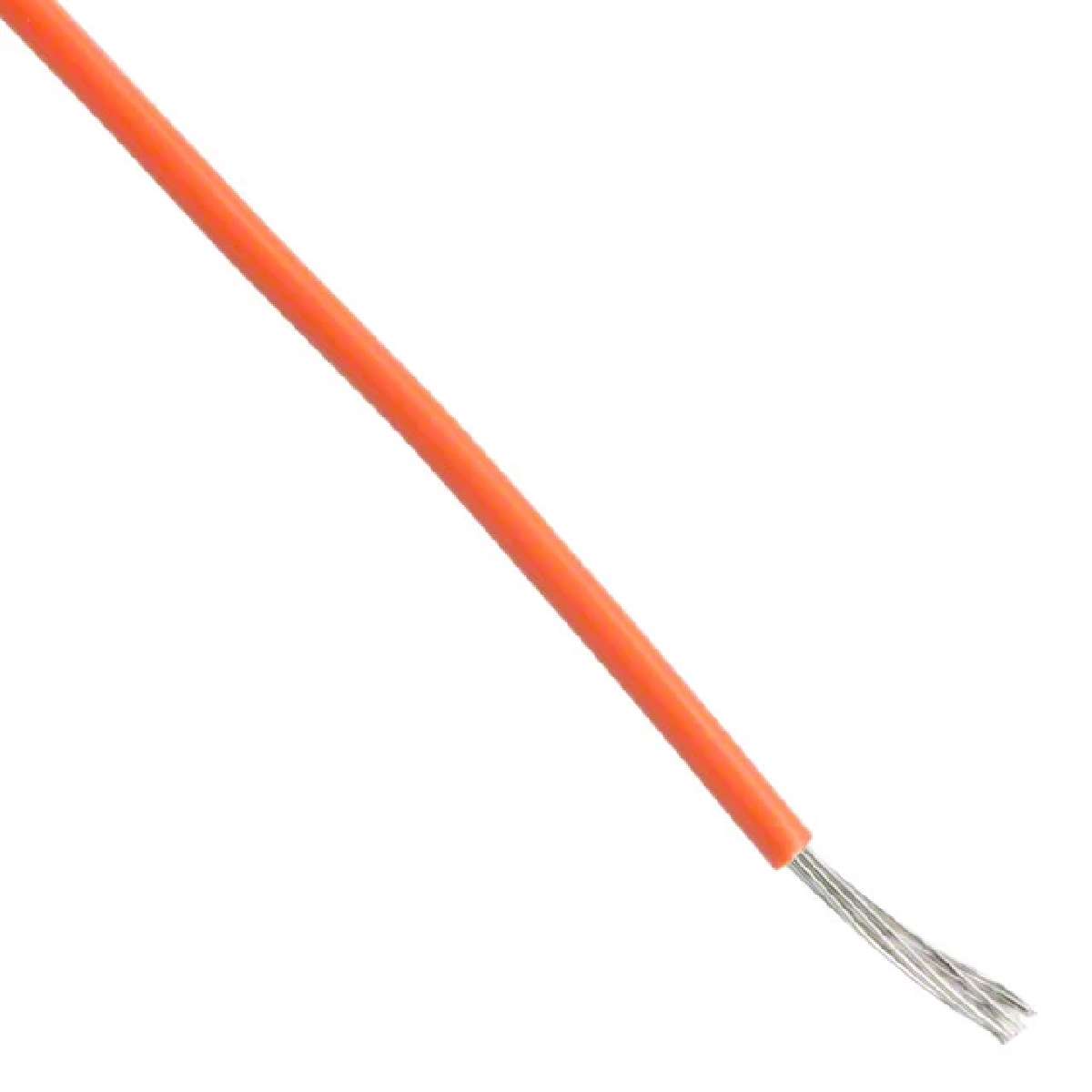

ALPHA WIRE 5874 OR001 Wire, Hook Up, PTFE, Orange, 24AWG, 0.24mm², 19 x 36AWG, 1000Ft
24 AWG, 19/36 Stranding, High-Reliability Color-Coded TFE Teflon Insulated Hook-Up Wire
** Conductor:** Stranded silver plated copper. ** Insulation:** Color coded, extruded Teflon TFE. ** Temperature Range:** -60°C to +200°C UL 200°C. ** Voltage Range:** 1000 volts MIL, 300 volts UL. ** Flammability:** Passes UL VW1 flame test. Use for 80°C and 105°C also. ** Stocked Colors:** 1-6.
It is used to military harnessing, medical electronics, power supply lead wire, appliance wiring.
得捷:
HOOK-UP STRND 24AWG ORANGE 1000"
Allied Electronics:
Cable, Multicond; 24AWG 19/36 TYPE EE
Newark:
# ALPHA WIRE 5874 OR001 Wire, Hook Up, PTFE, Orange, 24 AWG, 0.24 mm², 19 x 36AWG, 1000 ft
