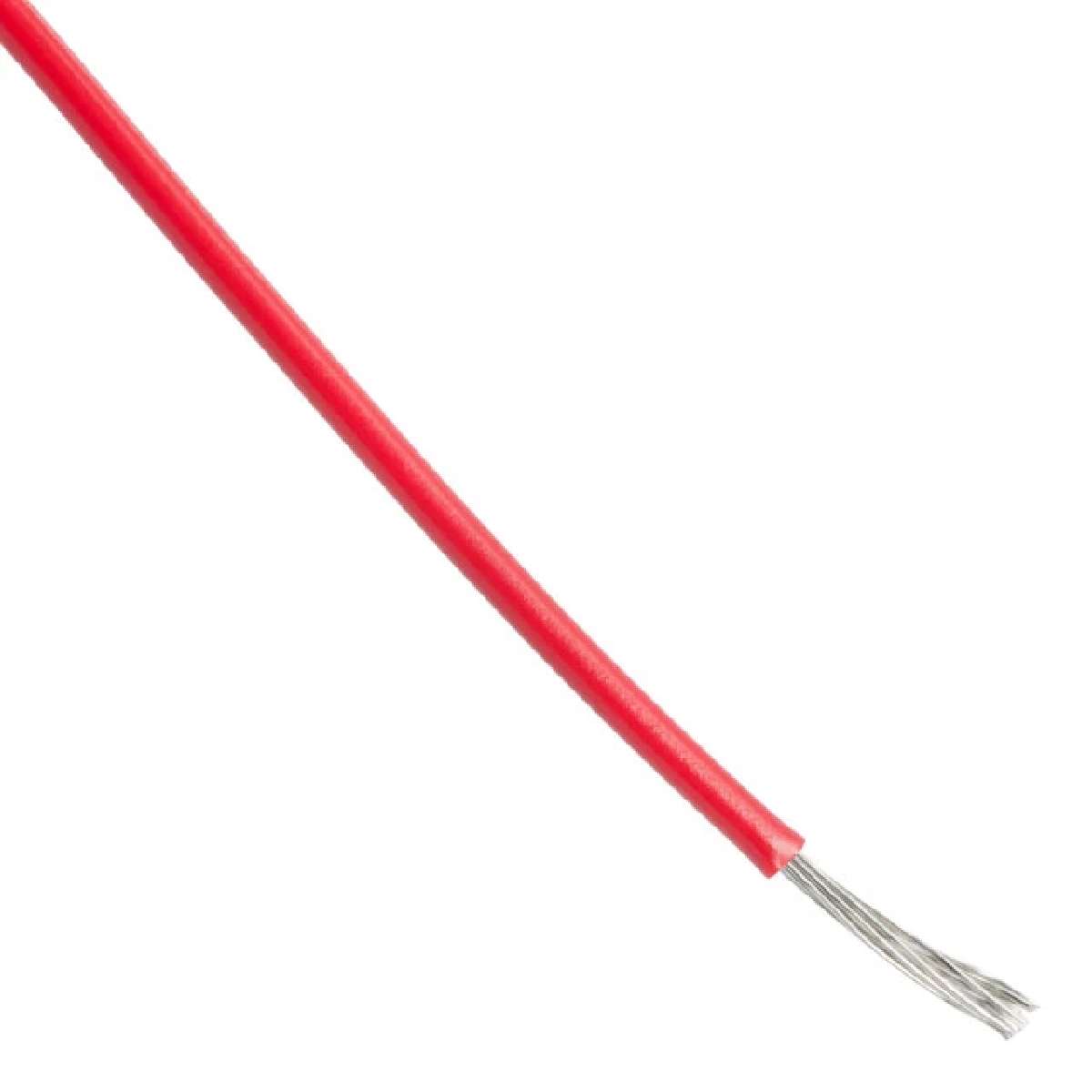

ALPHA WIRE 5874 RD001 Wire, PTFE, Red, 24AWG, 0.24mm², 19 x 36AWG, 1000Ft
24 AWG, 19/36 Stranding, High-Reliability Color-Coded TFE Teflon Insulated Hook-Up Wire
** Conductor:** Stranded silver plated copper. ** Insulation:** Color coded, extruded Teflon TFE. ** Temperature Range:** -60°C to +200°C UL 200°C. ** Voltage Range:** 1000 volts MIL, 300 volts UL. ** Flammability:** Passes UL VW1 flame test. Use for 80°C and 105°C also. ** Stocked Colors:** 1-6.
It is used to military harnessing, medical electronics, power supply lead wire, appliance wiring.
得捷:
HOOK-UP STRND 24AWG RED 1000"
Allied Electronics:
Wire, Hook-Up; 24 AWG; 19/36; 0.014 in.; 0.052 in.; -60 degC; Red
Newark:
# ALPHA WIRE 5874 RD001 Wire, PTFE, Red, 24 AWG, 0.24 mm², 19 x 36AWG, 1000 ft
