5000750517

Conn Mini USB Type B RCP 5POS 0.8mm Solder ST Thru-Hole 5 Terminal 1Port Tray

USB - mini B USB 2.0 OTG 插座 5 位 通孔

得捷:

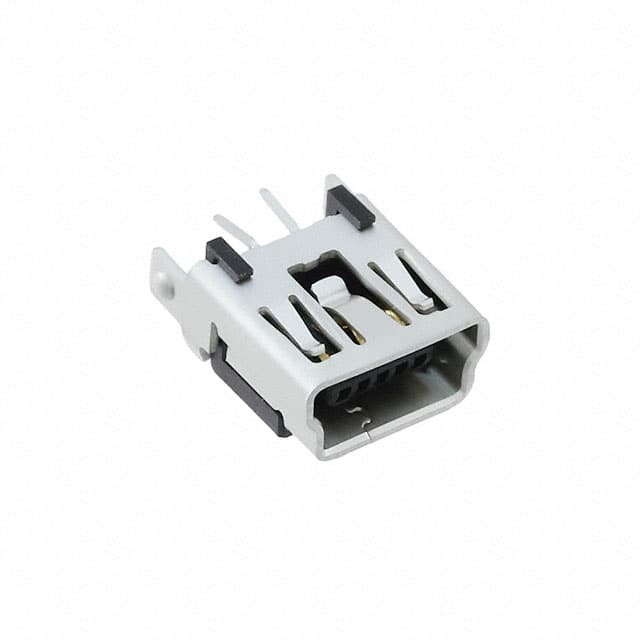

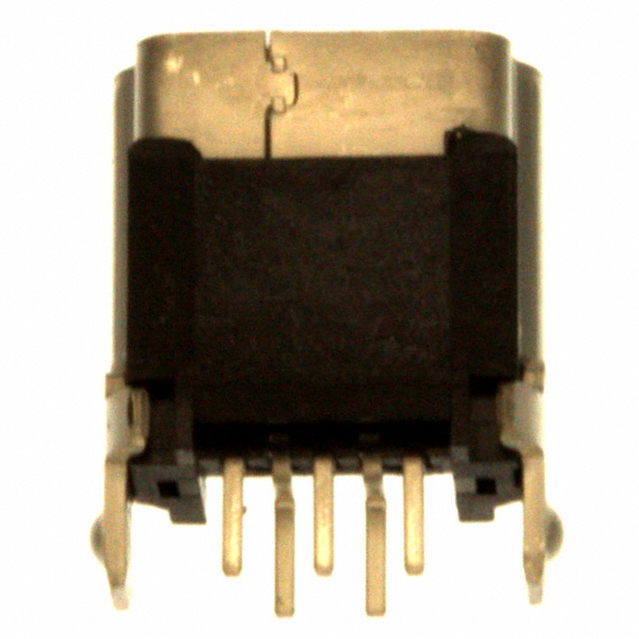

CONN RCPT USB2.0 MINI B VERT

欧时:
OTG USB Mini-B vertical PCB receptacle

立创商城:
5000750517

艾睿:

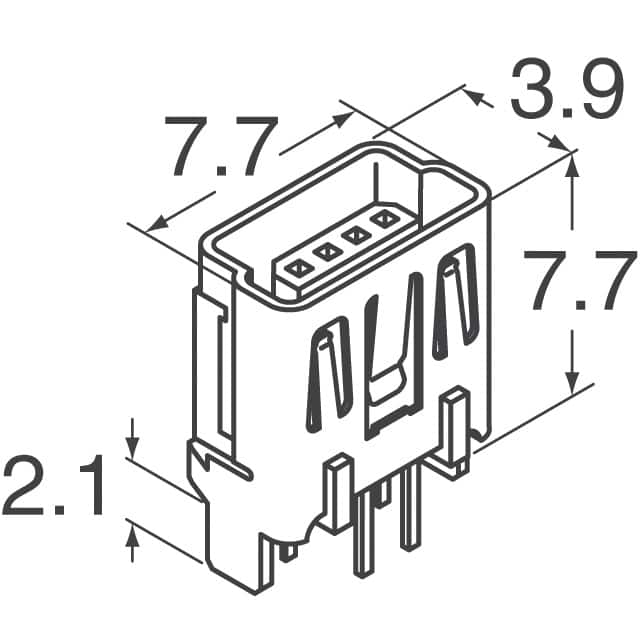

Use the usb type b 5000750517 audio and video connector from Molex for your design to run audio and video. This RCP connector&s;s 5 contacts that are made out of copper alloy and plated with gold over nickel. This connector has a single port. It has a straight body orientation. It has a maximum voltage rating of 30 VDC|30VAC. Its pitch is 1.6 mm. It has a receptacle type gender. This device has a maximum current rating of 1 A/contact. 5000750517 is housed in thermoplastic. The item will be shipped in tray orientation. This product is 7.7 mm long, 7.7 mm tall and 4.7 mm deep. Its 5 terminals use the solder termination method. This part has an operating temperature range of 0 °C to 50 °C.

Verical:
Conn Mini USB Type B RCP 5 POS 0.8mm Solder ST Thru-Hole 5 Terminal 1 Port Tray
