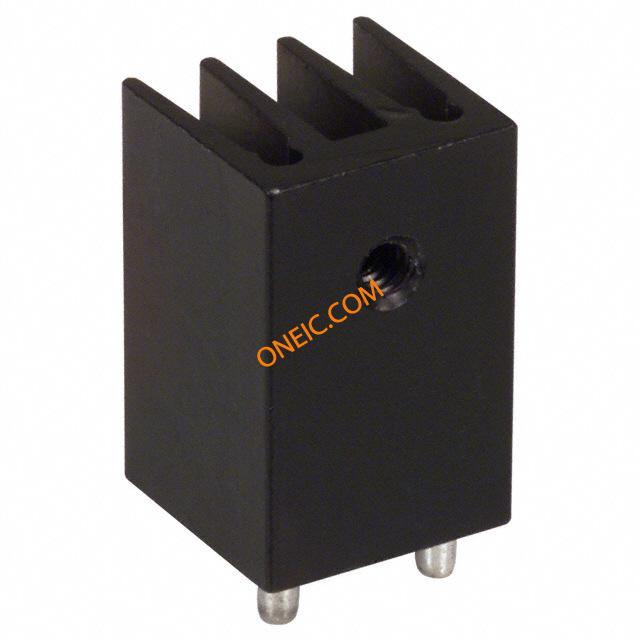

AAVID THERMALLOY 581002B02500G 散热器, TO-220/218, TO-220, 17.4 °C/W, 25.4 mm, 16.26 mm, 16.26 mm
The is a flat-back extruded Heat Sink with solderable pins suitable for TO-220 and single-gauge 0.02-inch TO-220 packages. It is made of aluminium with black anodize finish. This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.
- .
- Vertical mount orientation
热阻 17.4 ℃/W
热阻强制气流 4℃/W @500LFM
安装方式 Through Hole
封装 TO-220
长度 25.40 mm
宽度 16.26 mm
高度 25.4 mm
封装 TO-220
颜色 Black
材质 Aluminum
产品生命周期 Active
包装方式 Tray
制造应用 Thermal Management, 热管理, HVAC
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
