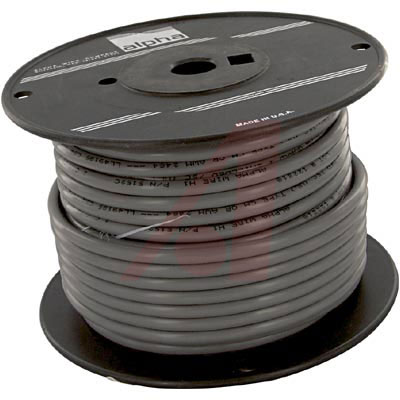

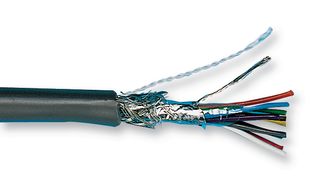

Multiconductor Shielded Cable, Xtra Guard® 1, Slate, 2Conductor, 20AWG, 0.56mm², 100Ft, 30.5m
2 芯 多芯 线缆 石板色 20AWG 箔,编织线 100.0"(30.5m)
得捷:
CABLE 2COND 20AWG SHLD 100"
艾睿:
Multi-Conductor Cable Tape Polyvinyl Chloride 2Conductors 20AWG 5.9mm 300VAC Slate 30.48m Spool
Allied Electronics:
Cble; Shielded; 2 Cond; 20 AWG; 7x28; Foil + Overall Braid Shld; PVC Ins
Newark:
Multiconductor Shielded Cable, Xtra Guard® 1, Slate, 2 Conductor, 20 AWG, 0.56 mm², 100 ft, 30.5 m
线规 20 AWG
额定电压DC 300 V
易燃性等级 UL VW-1
屏蔽 Yes
芯数 2
工作温度Max 75 ℃
工作温度Min -20 ℃
额定电压Max 300 VAC
额定电压 300 V
长度 30.5 m
颜色 Slate
绝缘材质 PVC
工作温度 -35℃ ~ 105℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Coil
制造应用 Aut, Automation & Process Control, Medical, Portable Devices, Compu, Automation & Process Control, 通信,控制, Portable Devices, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
