5060C SL005

5060C SL005图片1
5060C SL005图片2
5060C SL005图片3
5060C SL005图片4
5060C SL005图片5
5060C SL005图片6
5060C SL005图片7
5060C SL005图片8
5060C SL005概述

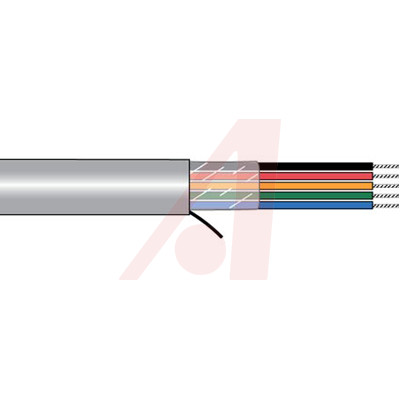

Multi-Conductor Cable Braid Polyvinyl Chloride 10Conductors 20AWG 8.8mm 300VAC Gray/Black 30.48m Spool

Xtra-Guard performance cable is designed to meet your needs. Its round construction makes it easier to install, seal, and route. With nearly 5000 standard constructions and the industry"s broadest range of gauges, conductor counts, shielding options, and jacket color choices, Xtra-Guard cable sets the global standard for reliable performance. Xtra-Guard 1 assures high performance in a tough PVC cable.


得捷:
CABLE 10COND 20AWG SLATE 100"


艾睿:
Multi-Conductor Cable Braid Polyvinyl Chloride 10Conductors 20AWG 8.8mm 300VAC Gray/Black 30.48m Spool


Allied Electronics:
Cble; Unshielded; 10 Cond; 20 AWG; 7x28; PVC Ins; Gry; PVC Jkt; TC


Chip1Stop:
Multi-Conductor Cable Braid Polyvinyl Chloride 10Conductors 20AWG 8.8mm 300VAC Gray/Black 30.48m Spool


Newark:
Multiconductor Unshielded Cable, Xtra Guard® 1, Slate, 10 Conductor, 20 AWG, 0.56 mm², 100 ft


5060C SL005中文资料参数规格
技术参数

线规 20 AWG

额定电压DC 300 V

易燃性等级 UL VW-1

屏蔽 No

芯数 10

工作温度Max 75 ℃

工作温度Min -20 ℃

额定电压Max 300 VAC

额定电压 300 V

外形尺寸

长度 30.5 m

物理参数

颜色 Slate

绝缘材质 PVC

工作温度 -35℃ ~ 105℃

导体材质 Tinned Copper

外壳材质 PVC

其他

产品生命周期 Active

包装方式 Coil

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

数据手册

在线购买5060C SL005
型号: 5060C SL005
制造商: Alpha Wire
描述:Multi-Conductor Cable Braid Polyvinyl Chloride 10Conductors 20AWG 8.8mm 300VAC Gray/Black 30.48m Spool
