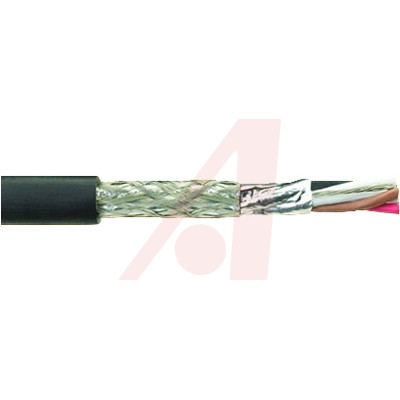

ALPHA WIRE 5472C SL002 Multipair Screened Cable, Communication, Slate, 2 Pair, 24AWG, 0.23mm², 500Ft, 152.4m
The is a 500ft 2-pair overall foil-shield Communication and Control Cable with stranded tinned copper conductors and semi-rigid PVC insulation. The cable has aluminium/polyester foil shield with 25% minimum overlap, foil facing in-ward stranded tinned copper drain wire equal in size to conductor.
- .
- 17.6lb Maximum pull tension
- .
- 64R Characteristic impedance
- .
- 28pf/ft at 1kHz Mutual capacitance nominal
- .
- 0.19µH/ft Nominal inductance
- .
- -20 to 80°C Temperature range
线规 24 AWG
额定电压DC 300 V
屏蔽 Yes
芯数 4
工作温度Max 80 ℃
工作温度Min -20 ℃
额定电压Max 300 VAC
额定电压 300 V
长度 500 ft
颜色 Slate
绝缘材质 PVC
工作温度 -20℃ ~ 80℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Coil
制造应用 Computers & Computer Peripherals, Automation & Process Control, Industrial, Communications & Networking, Security, Audio, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
