5637MAB27参数规格_中文资料_数据手册PDF

5637MAB27概述

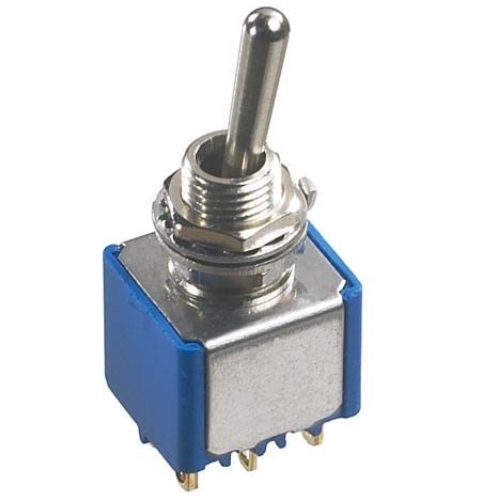

Switch Toggle Mom OFF Mom SPDT Large Lever Solder Lug 4A 250VAC 30VDC Panel Mount with Threads

Verical:
Switch Toggle Mom OFF Mom SPDT Large Lever Solder Lug 4A 250VAC 30VDC Panel Mount with Threads

MASTER:
Switch Toggle Mom OFF Mom SPDT Large Lever Solder Lug 4A 250VAC 30VDC Panel Mount with Threads

Powell:
Miniature Toggle Switch

Online Components:
Switch Toggle Mom OFF Mom SPDT Large Lever Solder Lug 4A 250VAC 30VDC Panel Mount with Threads

Electro Sonic:
Switch Toggle Mom OFF Mom SPDT Large Lever Solder Lug 4A 250VAC 30VDC Panel Mount with Threads

5637MAB27中文资料参数规格

技术参数

额定电流Max 4 A

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压DC Max 30 V

额定电压AC Max 250 V

接触电阻Max 10 mΩ

外形尺寸

高度 38.3 mm

物理参数

触点材质 Silver

工作温度 -40℃ ~ 85℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买5637MAB27

型号： 5637MAB27

制造商： Apem Components

描述：Switch Toggle Mom OFF Mom SPDT Large Lever Solder Lug 4A 250VAC 30VDC Panel Mount with Threads
