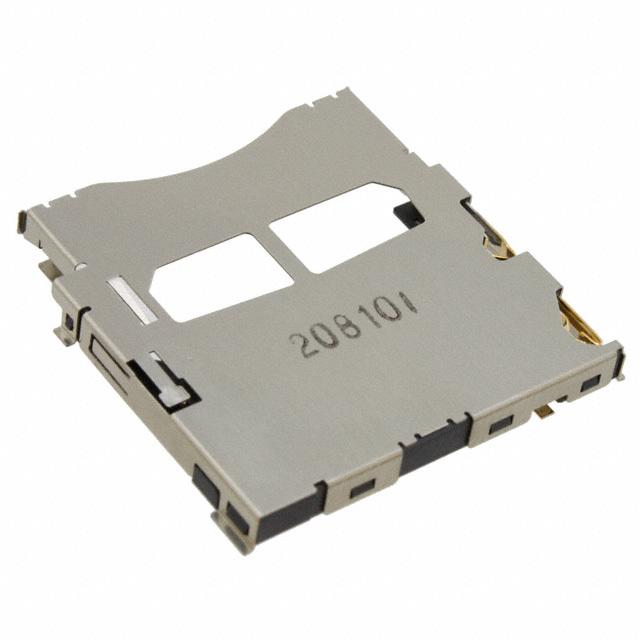

2.50毫米( 0.098 )间距SD记忆卡连接器, 2.95毫米( 0.116 “ )的高度,正常安装 2.50mm .098 Pitch SD Memory Card Connector, 2.95mm .116” Height, Normal Mount
The sd card micro SD connector from makes connecting additional memory to your application simple. This SKT connector"s 9 contacts that are made out of copper alloy and plated with gold over nickel. It has a socket type gender. Its pitch is 2.5 mm. It has a maximum voltage rating of 50 VDC|50VAC. It has a right angle body orientation. 5035000991 is housed in polymer. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This power entry module has an operating temperature of -25 to 85 °C. It uses the solder termination method. This product is 28.6 mm long, 2.95 mm tall and 27.8 mm deep.
触点数 9
触点电镀 Gold
额定电流 0.5 A
排数 01
无卤素状态 Low Halogen
电路数 9
拔插次数 10000
额定电流Max 0.5A/触头
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 9
封装 -
长度 28.6 mm
宽度 27.8 mm
高度 2.95 mm
封装 -
触点材质 Copper Alloy
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
