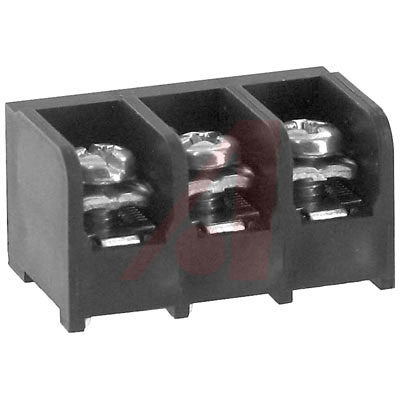

Connector Barrier Strip 3Position 9.53mm Solder Straight Through Hole 25A Contact
* Barrier Strip
* Barrier Style = Single Row, Tri-Barrier
* Block Style = Open Bottom with Standoffs
* 11.10 mm Centerline
* Vertical Mount Angle
立创商城:
5-1437652-4
艾睿:
Know that you will have strong connections between circuits when you use TE Connectivity&s;s barrier strip 5-1437652-4 PCB terminal block. Its pitch is 9.53 mm. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 25 A/contact. 5-1437652-4 is housed in thermoplastic. This product is 30.12 mm long, 15.88 mm tall and 17.78 mm deep. Its wire is 12-22 AWG. It uses the solder termination method.
Allied Electronics:
Buchanan; Conn; Term Strip; Barrier; 3Pole; 9.53mmPitch; SnglRow; 22-12; #6; 25A; 300V
Jameco:
Connector Barrier Strip 3 Position 9.53mm Solder Straight Through Hole 25 Amp Contact
Chip1Stop:
Conn Barrier Strip 3 POS 9.53mm Solder ST Thru-Hole 25A/Contact
Verical:
Conn Barrier Strip 3 POS 9.53mm Solder ST Thru-Hole 25A/Contact
MASTER:
PCB Mount Barrier Terminal Block - 9.53 mm - 1 Row - 3 Positions - 22 AWG - 12 AWG - 10 A.
Powell:
Barrier Style Terminal Blocks
Electro Sonic:
PCB Mount Barrier Terminal Block - 9.53 mm - 1 Row - 3 Positions - 22 AWG - 12 AWG ...
触点数 3
线规 12AWG ~ 22AWG
触点电镀 Tin
额定电流 25 A
排数 1
电路数 3
易燃性等级 UL 94 V-0
针脚数 3
额定电流Max 25A/触头
工作温度Max 105 ℃
额定电压 300 V
工作电压Max 300 V
安装方式 Through Hole
封装 -
引脚间距 9.53 mm
长度 30.12 mm
宽度 17.78 mm
高度 15.88 mm
封装 -
引脚间距 9.53 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy, Steel
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
