501JCAM032768BAFR

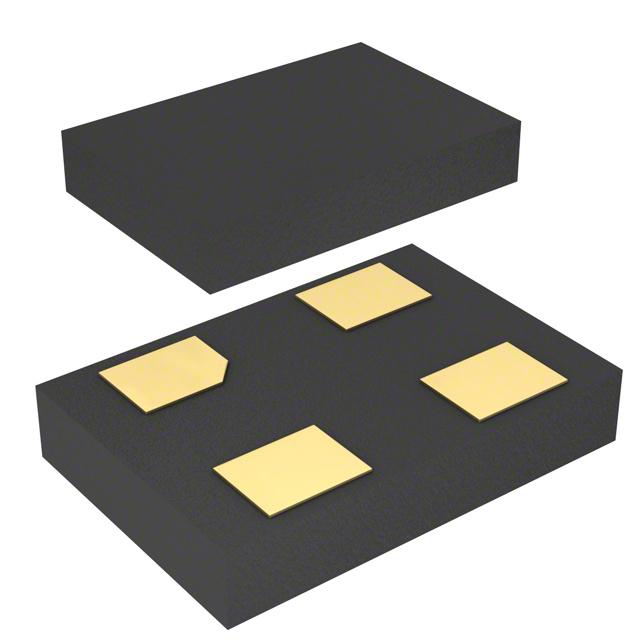

SMD Crystal Oscillator 0.032768MHz 3.3V 15pF 4Pin DFN T/R

* Wide frequency range: 32 kHz to 100 MHz * Contact for frequencies above 100 MHz * Si501 single frequency w/ OE * Si502 dual frequency w/ OE/FS * Si503 quad frequency w/ FS * ±20/30/50 ppm frequency stability including 10-year aging * LVCMOS output * Low period jitter * Low power * Continuous supply voltage range: +1.71 V to +3.63 V * User selectable tRise/tFall options * Glitchless start and stop * Excellent short-term stability, longterm aging * Industry standard footprints: 2x2.5, 2.5x3.2, 3.2x5 mm * RoHS compliant, Pb-free * Short lead times: * –20 to +70 °C: Extnd commercial * –40 to +85 °C: Industrial * The Si50x family also includes the Si504 for in-circuit programmability
