AMP FROM TE CONNECTIVITY 5650918-5 连接器, DIN 41612, Eurocard Type 1/2R系列, 48 触点, 插座, 2.54 mm, 3排, a + b + c

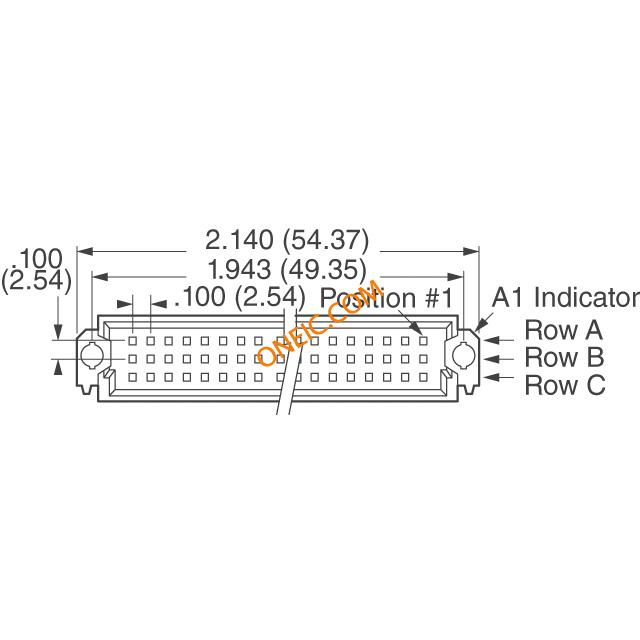

The din 41612 backplane connector can help you connect multiple different lines in parallel, essentially forming a computer bus for your project. This PIN connector"s 48 contacts that are made out of phosphor bronze and plated with tin. It has a straight body orientation. This is a 3-row connector. Its pitch is 2.54 mm. 5650918-5 is housed in gray polymer. It uses the solder termination method. This product is 54.36 mm long, 11.51 mm tall and 11.1 mm deep.
触点数 48
极性 Male
触点电镀 Gold
排数 3
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 48
额定电流Max 1.5A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
安装方式 Through Hole
封装 Through Hole
引脚间距 2.54 mm
长度 54.36 mm
宽度 11.0 mm
高度 11.51 mm
封装 Through Hole
引脚间距 2.54 mm
外壳颜色 Gray
颜色 Gray
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Box
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536694040
