5650949-5

120 位置 直角 欧洲卡 C 型 插头

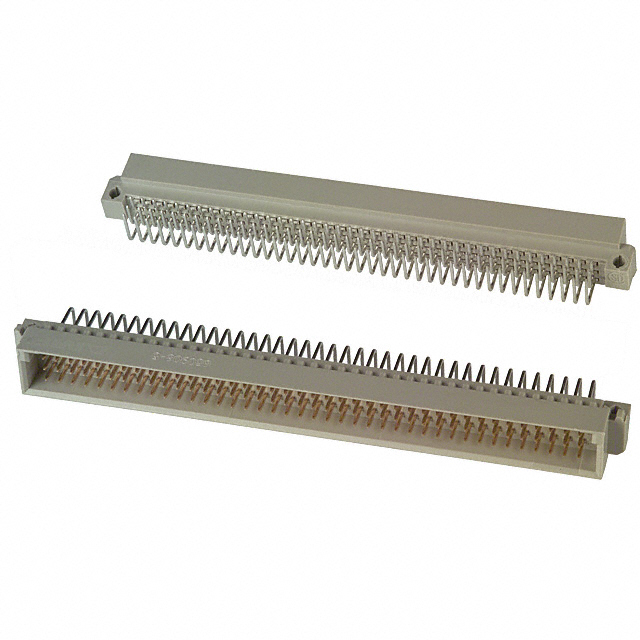

120 Position Din Connector Plug, Male Pins Gold Through Hole, Right Angle

得捷:
CONN DIN PLUG 120POS PCB RA GOLD

立创商城:
5650949-5

艾睿:
The speed and size of this din 41612 5650949-5 backplane connector from TE Connectivity provide a significant advantage for linking multiple small scale devices and operations. This PIN connector&s;s 120 contacts that are made out of copper alloy and plated with tin. It has a right angle body orientation. Its pitch is 2.54 mm. This is a 3-row connector. This device has a maximum current rating of 1.5 A/contact. It uses the solder termination method. This product is 114.3 mm long, 11.1 mm tall and 17.73 mm deep. 5650949-5 is housed in gray polymer.

安富利:
Conn DIN 41612 PIN 120 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn DIN 41612 PIN 120 POS 2.54mm Solder RA Thru-Hole Box

Powell:
Eurocard Type C

Electro Sonic:
ASSY,PIN,EUROCARD,TYPE C,LEAD-FREE,120 P
