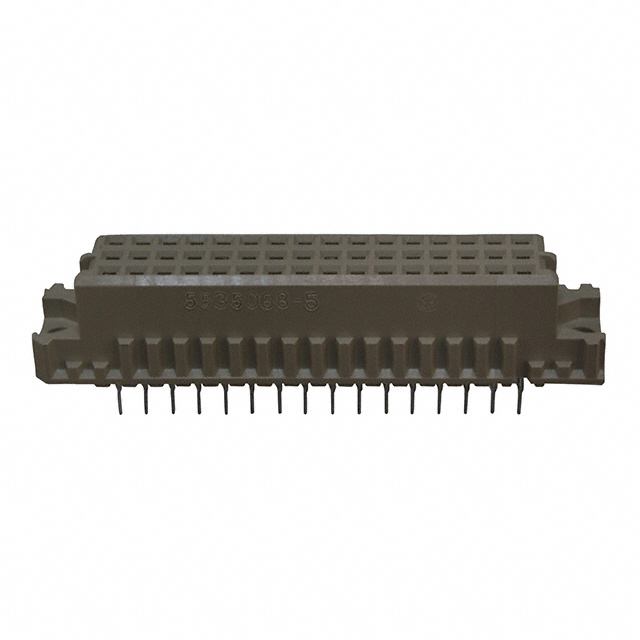

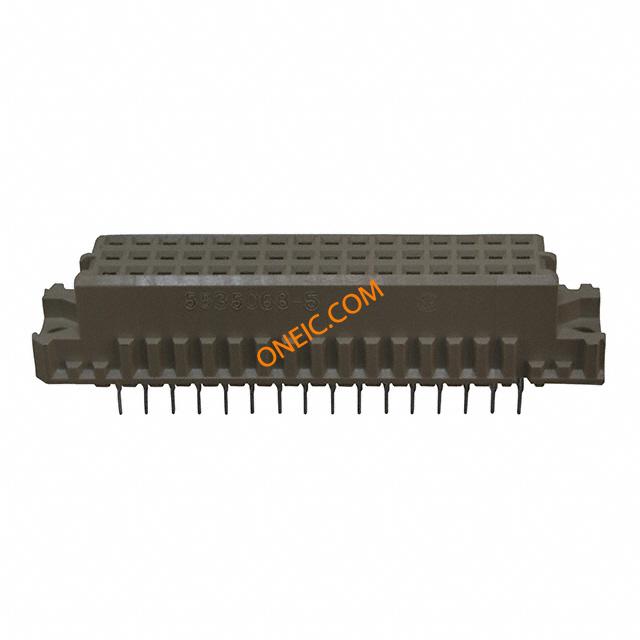

Conn DIN 41612 RCP 32POS 2.54mm Press Fit ST Thru-Hole

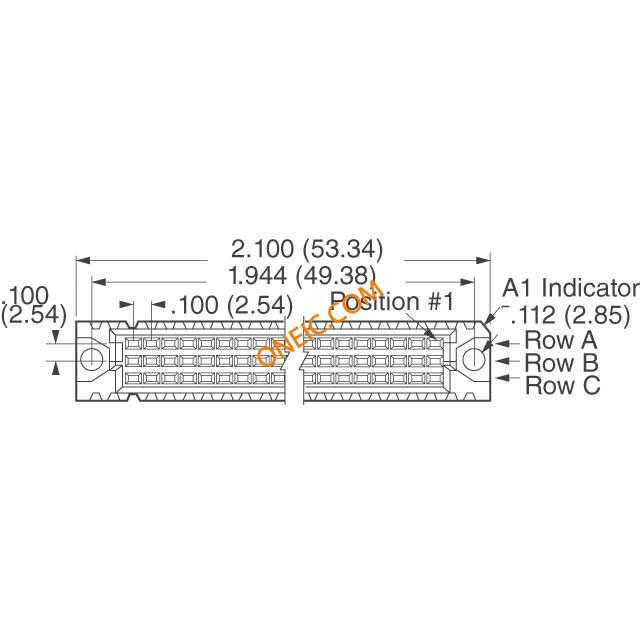

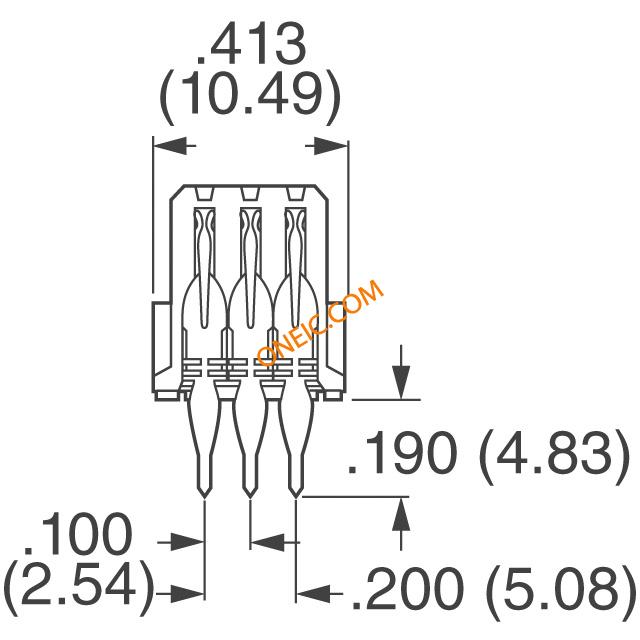

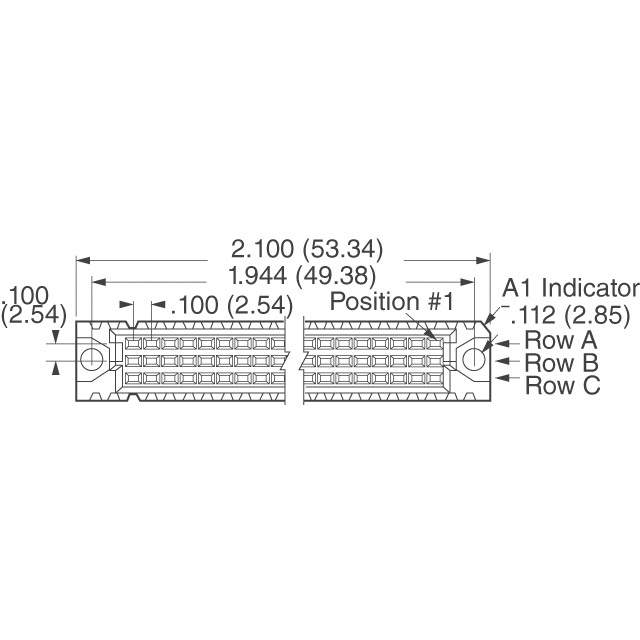

Solder "s din 41612 backplane connector to your printed circuit board to allow for fast serial bus communication between multiple boards. This RCP connector"s 32 contacts that are made out of copper alloy. Its pitch is 2.54 mm. It has a straight body orientation. It has a receptacle type gender. This is a 3-row connector. This device has a maximum current rating of 1.5 A/contact. It uses the press fit termination method. This product is 53.34 mm long, 11.5 mm tall and 10.6 mm deep. 5535068-5 is housed in gray polymer.
触点数 32
极性 Female
触点电镀 Tin
额定电流 1.5 A
排数 3
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 32
额定电流Max 1.5A/触头
安装方式 Through Hole
封装 -
引脚间距 2.54 mm
长度 53.3 mm
宽度 10.5 mm
高度 11.5 mm
封装 -
引脚间距 2.54 mm
外壳颜色 Gray
颜色 Gray
触点材质 Copper Alloy
工作温度 -55℃ ~ 125℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Box
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
