5650405-5

AMP FROM TE CONNECTIVITY  5650405-5  连接器, DIN41612, PCB, 母 48路

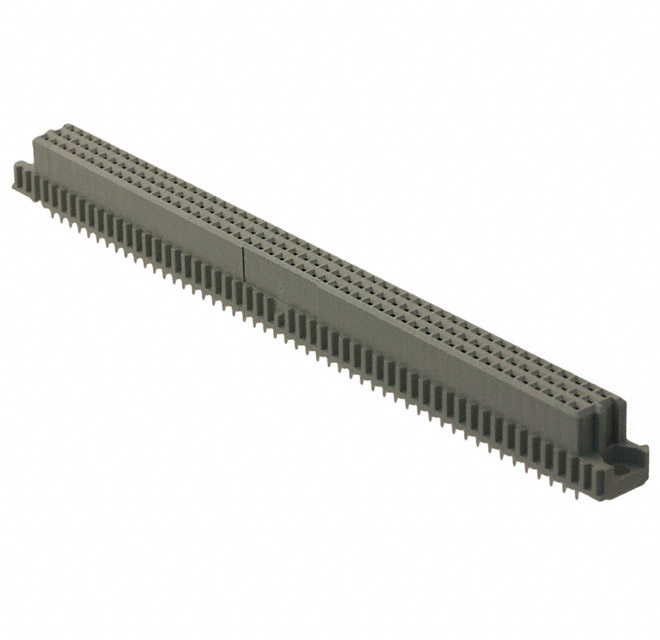

** Eurocard Connector Assembly**

A range of TE Connectivity Eurocard DIN41612 Connector Assemblies including Types B, B/2, C, C/2, F&G, M, Q&R, R and R/2.

得捷:
CONN DIN RCPT 150POS PCB GOLD

立创商城:
5650405-5

e络盟:
连接器, DIN41612, PCB, 母 48路

艾睿:
The TE Connectivity din 41612 5650405-5 backplane connector can help you connect multiple different lines in parallel, essentially forming a computer bus for your project. This F connector&s;s 150 contacts that are made out of copper alloy. This is a 3-row connector. It has a straight body orientation. Its pitch is 2.54 mm. It has a female type gender. This device has a maximum current rating of 1.5 A/contact. 5650405-5 is housed in gray polymer. This product is 139.7 mm long, 11.5 mm tall and 10.6 mm deep. It uses the solder termination method.

Allied Electronics:
ASSEMBLY; RECEPTACLE; EUROCARD; TYPE C; LEAD; 150

安富利:
Conn DIN 41612 F 150 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn DIN 41612 F 150 POS 2.54mm Solder ST Thru-Hole Box

Newark:
# AMP - TE CONNECTIVITY  5650405-5  DIN 41612 Connector, Type C Series, 150 Contacts, Receptacle, 2.54 mm, 3 Row, a + b + c

MASTER:
ASSEMBLY, RECEPTACLE, EUROCARD, TYPE C, LEAD-FREE, 150 POSITION, 3.30[.130] SOLDER POSTS

Powell:
Eurocard Type C

Electro Sonic:
ASSEMBLY,RECEPTACLE,EUROCARD,T
