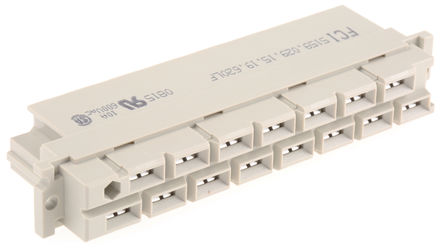

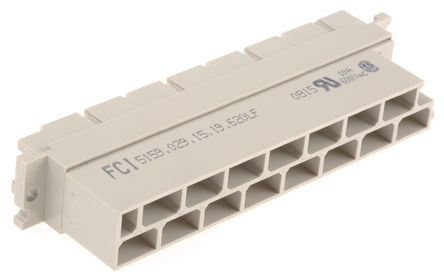

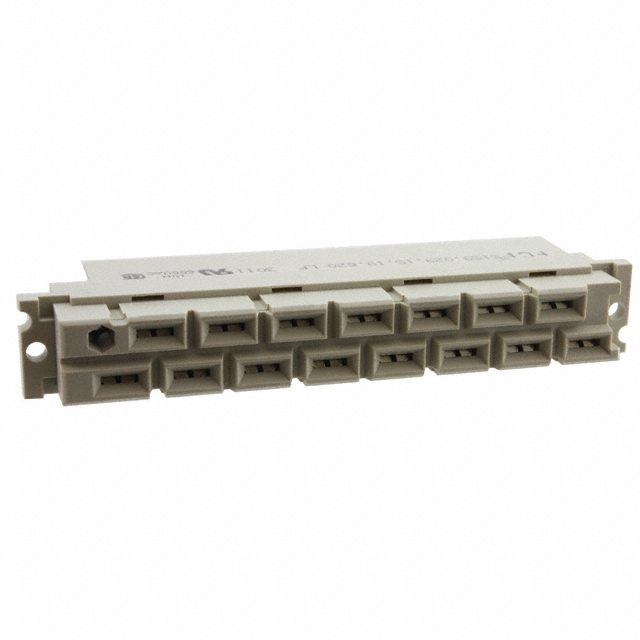

AMPHENOL FCI 51590291519620LF 连接器, DIN 41612, 5159系列, 15 触点, 插座, 5.08 mm, 2排, a + b
H15 系列 DIN 41612
欧时:
Amphenol FCI 2 行 15 路 10.16mm 节距 DIN 41612 插座 51590291519620LF, H15型 C1等级, Faston端接, 15A
贸泽:
DIN 41612 连接器 TYPE H VERTICAL 15 POS 10.16MM CENTE
e络盟:
AMPHENOL FCI 51590291519620LF 连接器, DIN 41612, 5159系列, 15 触点, 插座, 5.08 mm, 2排, a + b
Allied Electronics:
Connectors; DIN 41612; TYPE H VERTICAL 15 POS 10.16MM CENTE
安富利:
Conn DIN 41612 RCP 15Power POS 10.16mm Faston ST Panel Mount Box
Chip1Stop:
Conn DIN 41612 RCP 15Power POS 10.16mm Faston ST Panel Mount Box
Verical:
Conn DIN 41612 RCP 15Power POS 10.16mm Faston ST Panel Mount Box
触点数 15
极性 Female
触点电镀 Gold
额定电流 15 A
绝缘电阻 1000 MΩ
排数 2
额定电流Max 15A/触头
工作温度Max 125 ℃
工作温度Min -65 ℃
额定电压 500 VAC
接触电阻Max 8 mΩ
安装方式 Through Hole
长度 95 mm
宽度 31.1 mm
高度 14.8 mm
触点材质 Copper Alloy
工作温度 -65℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Logistics, Consumer Electronics, Industrial, Medical, Automation & Process Control, Lighting, Communications & Networking, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
