5536418-5

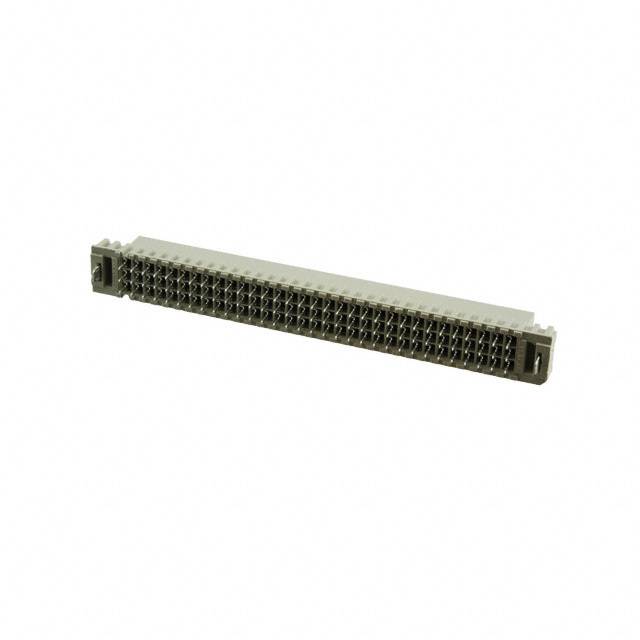

Conn DIN 41612 RCP 96POS 2.54mm Solder ST Thru-Hole

96 针位 DIN 插座，母型插口 镀金 通孔

立创商城:
5536418-5

得捷:
CONN DIN RCPT 96POS PCB GOLD

艾睿:
The speed and size of this din 41612 5536418-5 backplane connector from TE Connectivity provide a significant advantage for linking multiple small scale devices and operations. This RCP connector&s;s 96 contacts that are made out of copper alloy and plated with tin. Its pitch is 2.54 mm. It has a straight body orientation. This is a 3-row connector. It has a receptacle type gender. This device has a maximum current rating of 1.5 A/contact. This backplane connector has an operating temperature of -55 to 105 °C. It uses the solder termination method. This product is 93.98 mm long, 11.5 mm tall and 10.6 mm deep. 5536418-5 is housed in gray polymer.

Allied Electronics:
ASSY, RECEPT, EURO, TYPE C, LEAD-FREE, 96, .09

安富利:
Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Box

Newark:
# AMP - TE CONNECTIVITY  5536418-5  DIN 41612 Connector, 96 Contacts, Receptacle, 2.54 mm, 3 Row, a + b + c

MASTER:
ASSEMBLY, RECEPTACLE, EUROCARD, TYPE C, LEAD-FREE, 96 POSITION, 2.49[.098] SOLDER POSTS WITH BOARD-LOCKS

Powell:
Eurocard Type C

Online Components:
ASSY,RECEPT,EURO,TYPE C,LEAD-F

Electro Sonic:
ASSY,RECEPT,EURO,TYPE C,LEAD-F
