52937-3概述

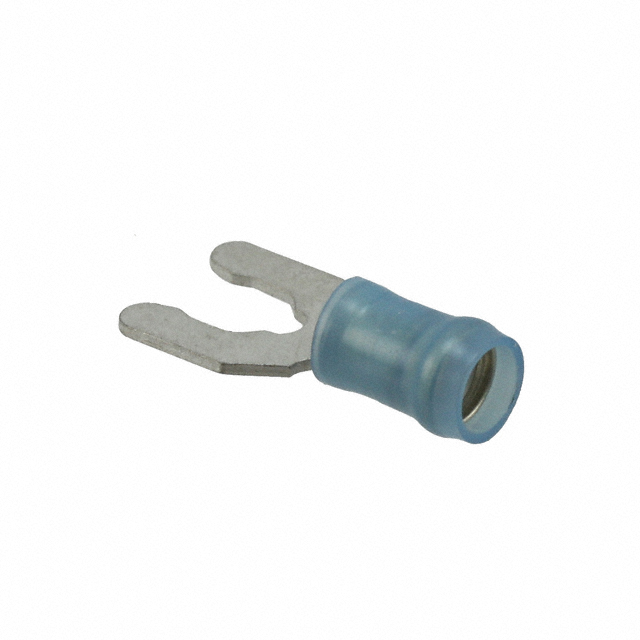

Spring Spade Terminal 14-16AWG 23.06mm 10.31mm Tin T/R

蓝色 10 接线柱 端子 - 铲形 压接 14-16 AWG


得捷:
CONN SPADE TERM 14-16AWG #10 BLU


立创商城:
52937-3


艾睿:
The best way to connect two terminal blocks in your application is by using the spring spade terminal 52937-3 wire terminal from TE Connectivity. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 23.06 mm long and 10.31 mm. Its wire is 14-16 AWG.


安富利:
Spring Spade Terminal 14-16AWG 23.06mm 10.31mm Tin T/R


Verical:
Spring Spade Terminal 14-16AWG Phosphor Bronze Blue 23.06mm Tin T/R


MASTER:
TERMINAL, SHORT SPRING SPADE, PIDG, WIRE SIZE: 16-14 AWG


Powell:
Ring and Spade Tongue Terminals


Electro Sonic:
TERMINAL,PIDG SPR SPD 16-14 10


52937-3中文资料参数规格
技术参数

线规 14AWG ~ 16AWG

额定电压Max 300 VAC

封装参数

封装 -

外形尺寸

长度 23.06 mm

宽度 10.3 mm

封装 -

物理参数

颜色 Blue

触点材质 Phosphor Bronze

材质 Phosphor Bronze

绝缘材质 Nylon

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买52937-3
型号: 52937-3
描述:Spring Spade Terminal 14-16AWG 23.06mm 10.31mm Tin T/R
