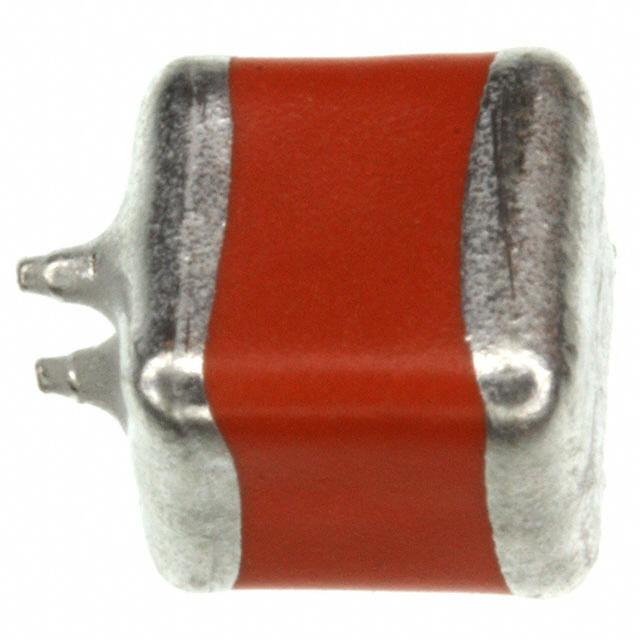

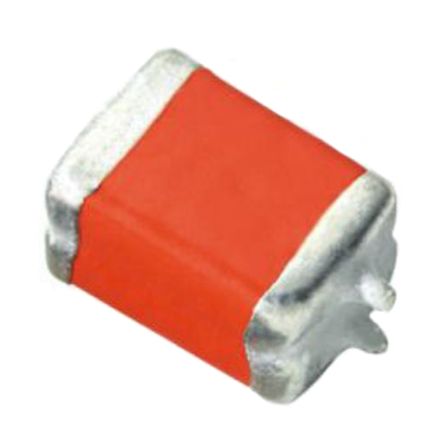

VISHAY 597D107X0035F2T 表面贴装钽电容, TANTAMOUNT®, 597D系列, 100 µF, ± 20%, 35 V, 3024 [7660-47 公制], F
The is a surface mount TANTAMOUNT® solid Tantalum Chip Capacitor is preferred for filtering applications in small power supplies and DC/DC converters. The 597D series capacitor is preferred for their high reliability, long life, extended shelf life, exceptional stability with temperature and their small size. It consists of a sintered tantalum pellet, the anode, on which a tantalum oxide dielectric is formed by electrolysis. The pellet is then coated with manganese dioxide for the cathode. Positive and negative terminations are attached to this pellet and the assembly may be conformally-coated or moulded.
- .
- Ultra-low ESR
- .
- Conformal coated
- .
- Maximum CV
额定电压DC 35.0 V
电容 100 µF
等效串联电阻ESR 100 mΩ
容差 ±20 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 35 V
安装方式 Surface Mount
封装 3024
长度 7.6 mm
宽度 6 mm
高度 4.7 mm
封装 3024
工作温度 -55℃ ~ 125℃
包装方式 Cut Tape CT
制造应用 商业, Aerospace, 计算机和计算机周边, Military, 通信与网络, 车用, Sensing & Instrumentation, 军用与航空, 电源管理, Defence, Industrial, 国防, Power Management, Computers & Computer Peripherals, Automotive, 工业, Communications & Networking, 传感与仪器, Commercial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
