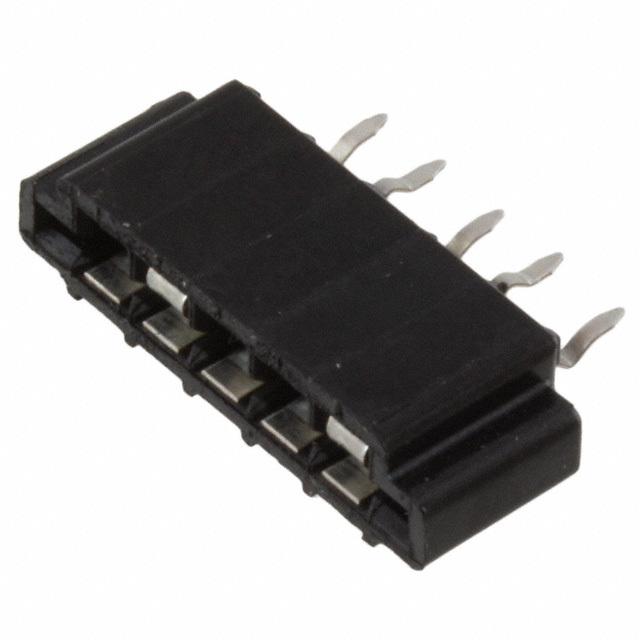

连接器, FPC, 母, 5路, 2.54MM, 通孔安装
This ffc connector flexible printed circuit from can have discrete components built on it. This is a 1-row connector. Its pitch is 2.54 mm. It has a straight body orientation. This socket type connector"s 5 contacts that are made out of phosphor bronze and plated with bright tin. The item will be shipped in tray orientation. 5-520315-5 is housed in black polyester. This product is 17.6 mm long, 6.93 mm tall and 4.83 mm deep. It uses the solder termination method.
触点数 5
极性 Female
触点电镀 Tin
额定电流 1 A
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 5
额定电压 250 V
安装方式 Through Hole
引脚间距 2.54 mm
长度 15.44 mm
宽度 4.83 mm
高度 6.93 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tray
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
